>>C<< Timing Chain TENSIONER Assembly Installation

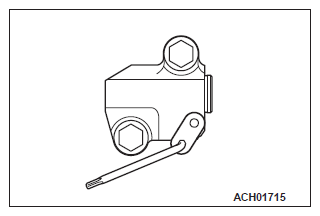

  1. While pressing in the plunger of the timing chain tensioner assembly, insert the pin as illustrated to lock the plunger.
  2. Install the timing chain tensioner assembly onto the cylinder block, timing chain tensioner assembly bolts to 9.5 ± 2.5 N.m (84 ± 22 in-lb).
    G12143874Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Remove the pin from the tensioner. Timing chain should be tensioned via the tensioner lever assembly.
    G12647911Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
