Removal And Installation: Notes

Pre-removal and post-installation operation

• Quarter trim upper removal and installation. Refer to TRIM .

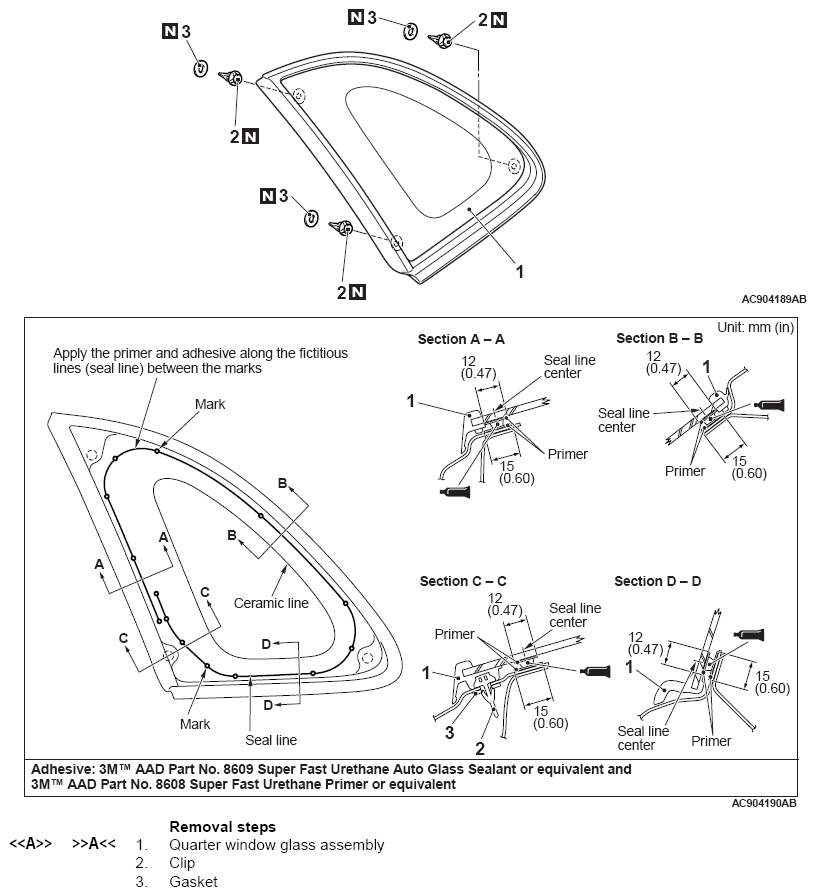

Fig 1: Removing/Installing Quarter Window Glass Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
