Removal And Installation

CAUTION: If the battery current sensor or engine control module is replaced, make the battery current sensor learn the zero point. (Refer to BATTERY CURRENT SENSOR CALIBRATION .)

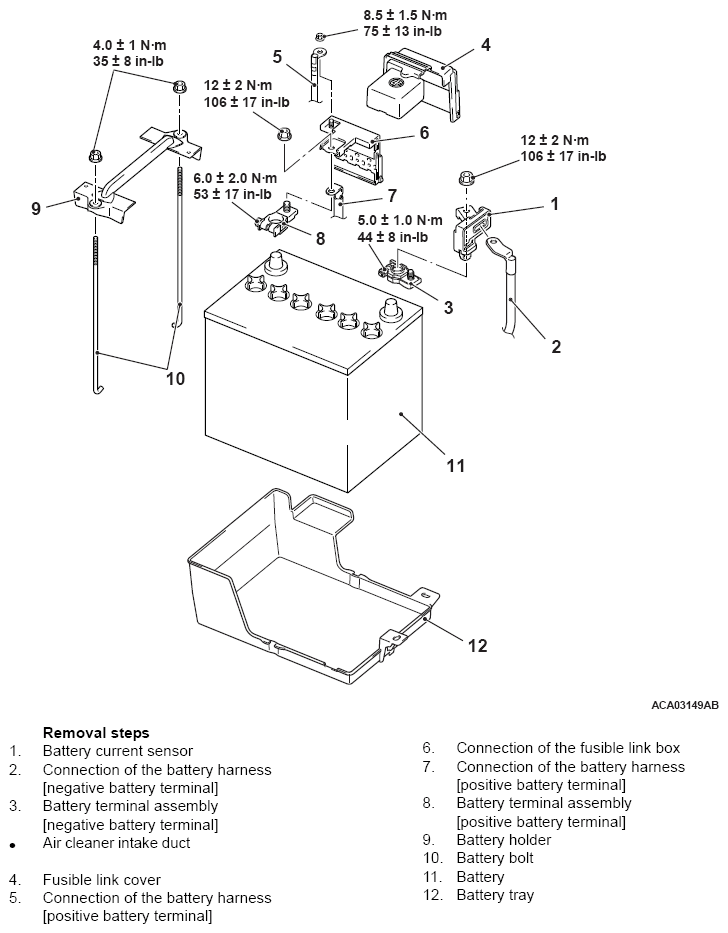

Fig 1: Removing/Installing Battery Components With Torque Specification
G12156646Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
