Home >> Mitsubishi >> 2018 >> RVR GT >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Engine Overhaul (2.4L Engine) >> Piston And Connecting Rod >> Removal And Installation >> Notes

Removal And Installation: Notes

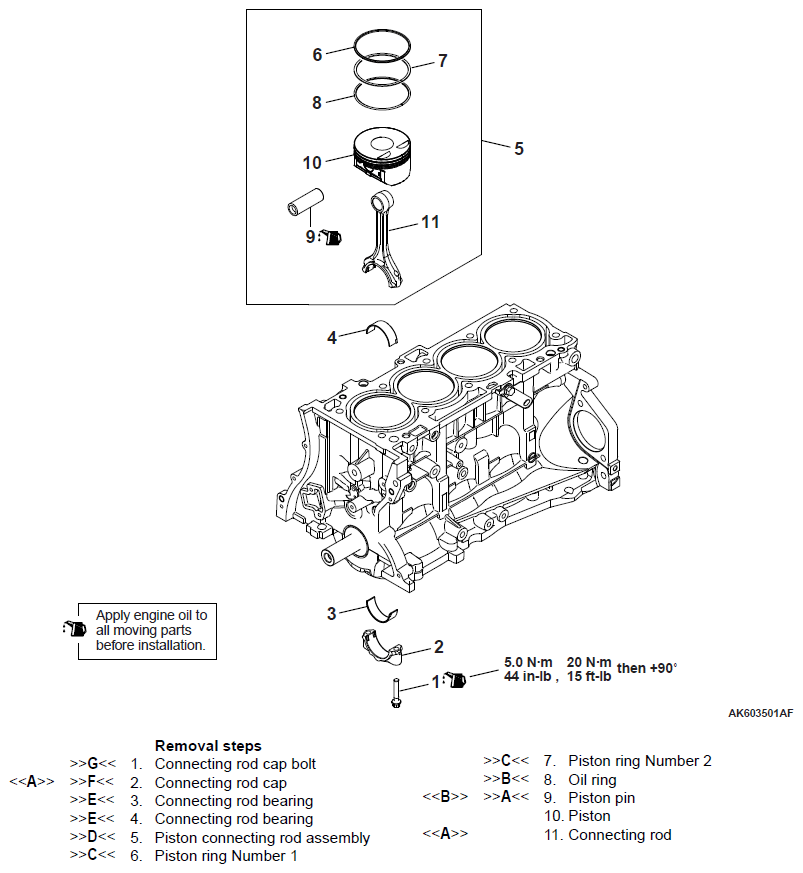

Fig 1: Removing/Installing Piston And Connecting Rod Components With Torque Specification
G12152890Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
