Special Tools

Tool Tool number and name Supersession Application
G12155198Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991958
  1. MB991824
  2. MB991827
  3. MB991910
  4. MB991911
  5. MB991914
  6. MB991825
  7. MB991826

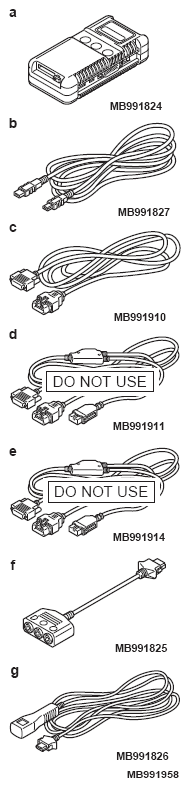

M.U.T.-III sub-assembly
  1. Vehicle communication interface (V.C.I.)
  2. M.U.T.-III USB cable
  3. M.U.T.-III main harness A (Vehicles with CAN communication system)
  4. M.U.T.-III main harness B (Vehicles without CAN communication system)
  5. M.U.T.-III main harness C (for Chrysler models only)
  6. M.U.T.-III measurement adapter
  7. M.U.T.-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
CAUTION: M.U.T.-III main harness A (MB991910) should be used. M.U.T.-III main harness B and C should not be used for this vehicle.
EPS-ECU check (Diagnostic trouble code, data list)
G09625236Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991223
  1. MB991219
  2. MB991220
  3. MB991221
  4. MB991222

Harness set
  1. Test harness
  2. LED harness
  3. LED harness adaptor
  4. Probe
 General service tools Continuity check and voltage measurement at harness wire or connector for loose, corroded or damaged terminals, or terminals pushed back in the connector.
  1. Connector pin contact pressure inspection
  2. Power circuit inspection
  3. Power circuit inspection
  4. Commercial tester connection
G08294095Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992006 Extra fine probe - Making voltage and resistance measurement during troubleshooting
G05376062Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991897 or MB992011 Ball joint remover MB991113-01, MB990635-01 or General service tool Knuckle and tie rod end ball joint disconnection
NOTE: Steering linkage puller (MB990635 or MB991113) is also available to disconnect knuckle and tie rod end ball joint.
G04871584Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB990326 Preload socket General service tool
  • Tie rod end ball joint rotation torque measurement
  • Steering column shaft total rotation torque measurement
G04871766Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991006 Preload socket MB990228-01 Pinion total rotation torque measurement
G04872134Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB990803 Steering wheel puller General service tool Steering wheel removal
G05394772Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992209 Bellows band crimping tool MB992209 Tie-rod bellows band installation
G06249243Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992249 Variable spanner MB992249 Tie-rod removal and installation
G06248937Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB990776 Front axle base MB990776-01 Dust cover installation
