Steering Angle Check

CAUTION: After adjusting the steering angle, always perform calibration to make ASC-ECU learn the neutral position of the steering wheel sensor (Refer to STEERING WHEEL SENSOR CALIBRATION ).

Check that the wheel alignment is normal. (Refer to ON-VEHICLE SERVICE ).
Place the front wheel onto the turning radius gauge, and measure the steering angle.
Standard value:

Inner wheel: 38° 50' ± 1° 30' (Difference between right and left wheels must be 2°00' or less)

Outer wheel (reference): 32° 20'

Fig 1: Placing Front Wheel Onto Turning Radius Gauge
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
If the measured value is not within the standard value, adjust the tie-rod ends (right and left), and repeat Steps 1 and 2.
If the measured value is not within the standard value after performing Step 3, replace the steering gear and linkage assembly (Refer to POWER STEERING GEAR BOX AND LINKAGE ).

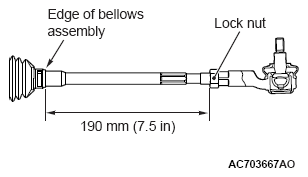

Fig 2: Checking Screw In Tie-Rod To Length

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
