Home >> Mitsubishi >> 2018 >> RVR ES >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior >> Seat Assembly >> Rear Seat Assembly >> Removal And Installation >> Notes

Removal And Installation: Notes

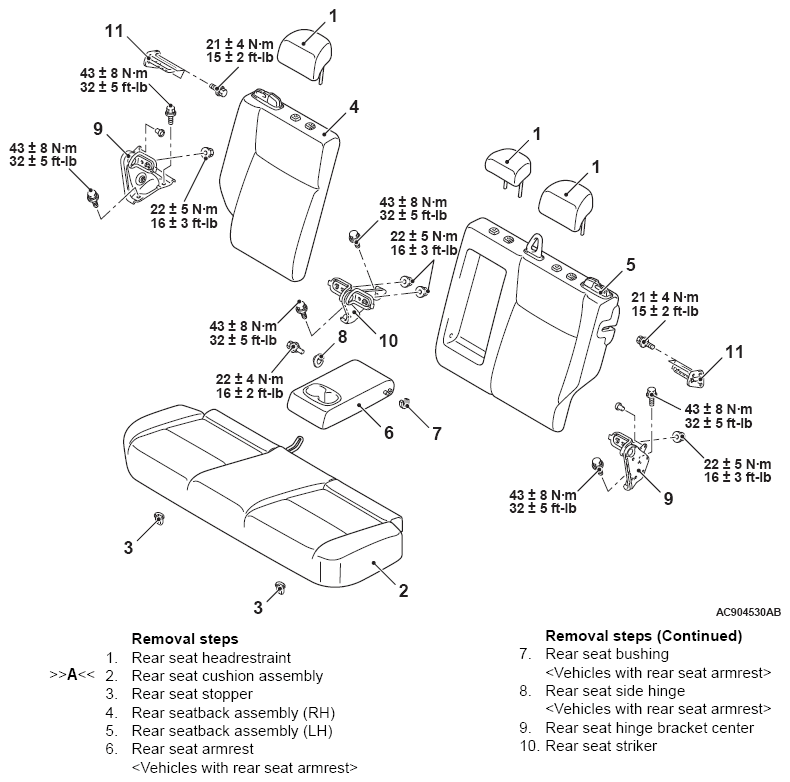

Fig 1: Removing/Installing Rear Seat Assembly Components With Torque Specification

G12161731

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
