Dash Panel

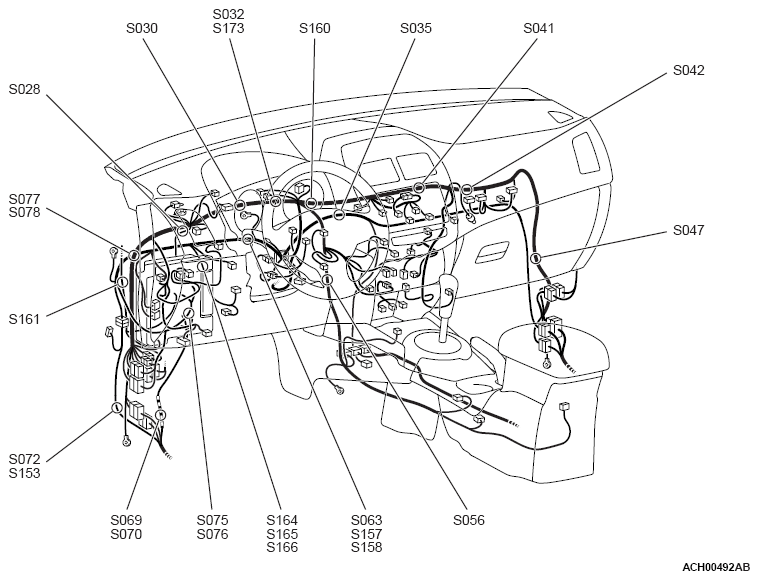

Fig 1: Dash Panel Wiring Harness Connector Locations (1 Of 2)
G12162260Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

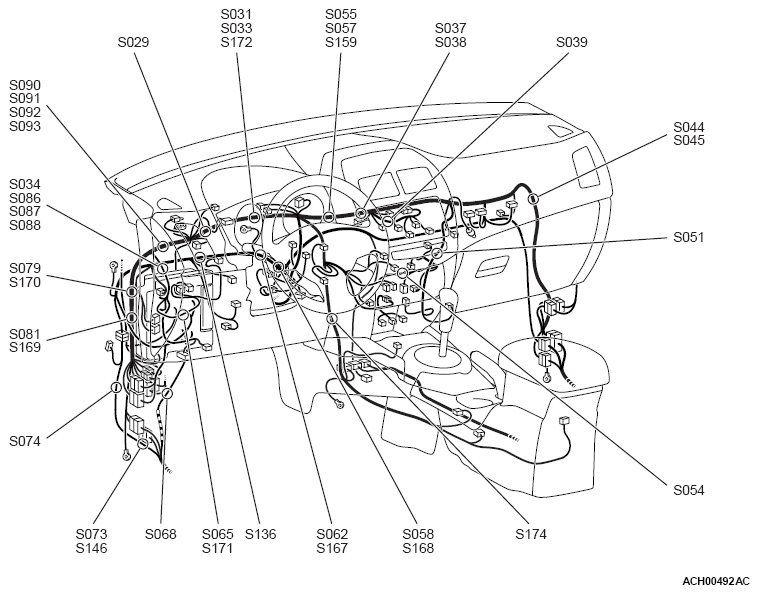

Fig 2: Dash Panel Wiring Harness Connector Locations (2 Of 2)
G12162261Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
