Configuration Diagrams: Liftgate

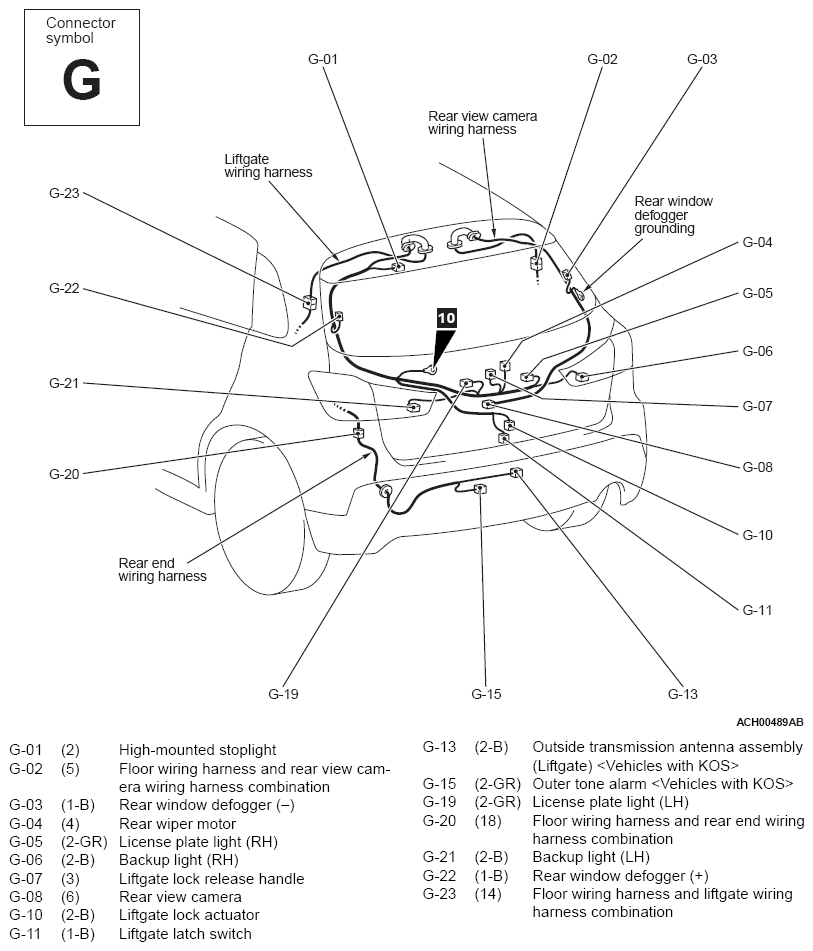

Fig 1: Liftgate Configuration Diagram

G12162256

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
