Removal And Installation: Notes

Pre-removal Operation
  • Parking Brake Rear Cable Connection (rear brake caliper side) Removal (Refer to PARKING BRAKE CABLE ).
  • Brake Fluid Draining
 Post-installation Operation
  • Brake Fluid Supplying and Air Bleeding.
  • Parking Brake Rear Cable Connection (rear brake caliper side) Installation (Refer to PARKING BRAKE CABLE ).

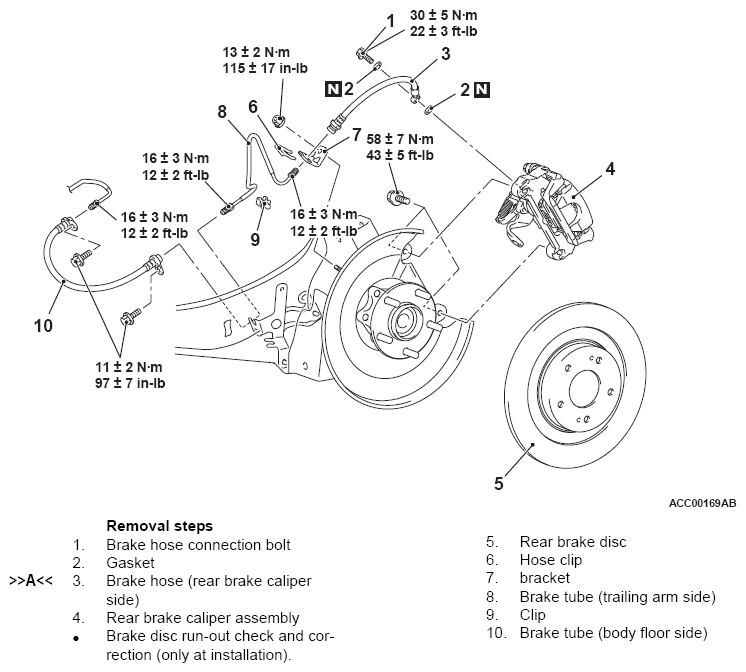

Fig 1: Removing/Installing Rear Disc Brake Assembly Components With Torque Specification
G12155154Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
