LEMON Manuals
: Even more car manuals for everyone
Home
>>
Mitsubishi
>>
2018
>>
RVR ES
>>
Repair and Diagnosis
>>
Brakes
>>
Mechanical - Hydraulic
>>
Basic Brake System
>>
Rear Disc Brake Assembly
>>
Disassembly And Reassembly
>>
Notes
Disassembly And Reassembly: Notes

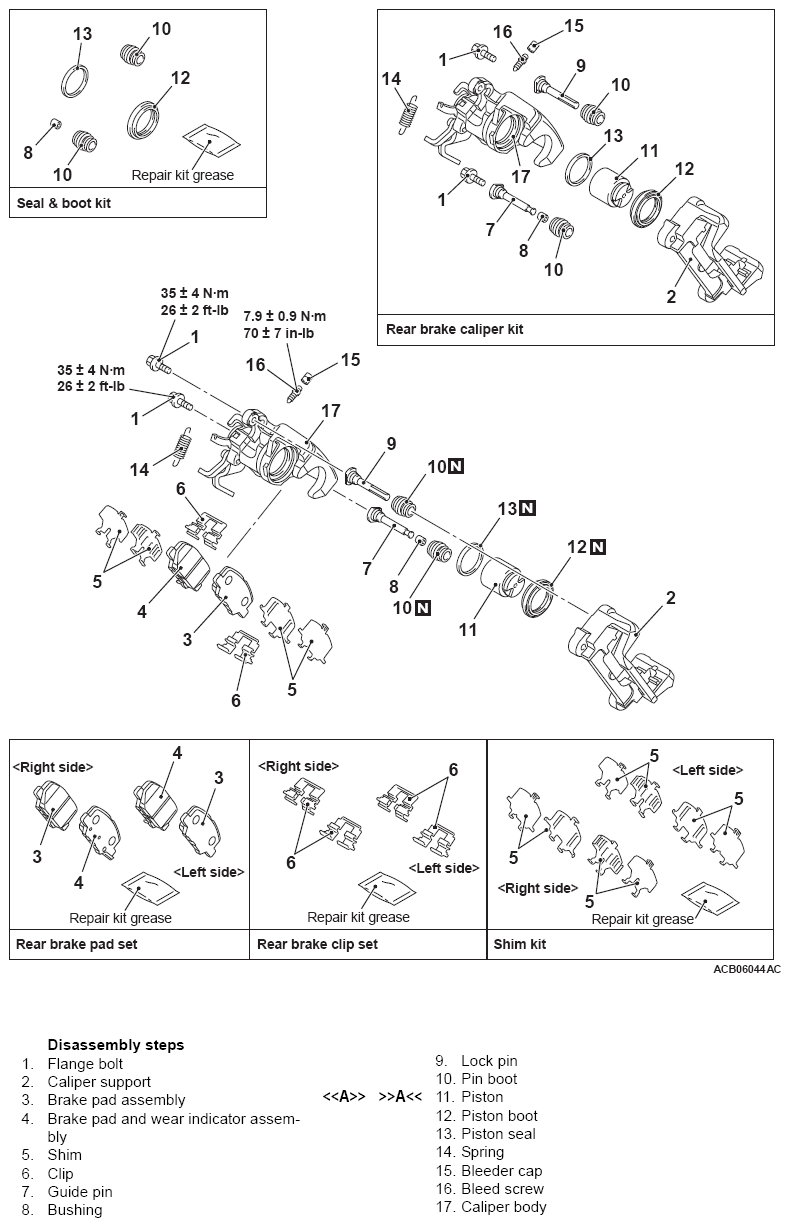

Fig 1: Removing/Installing Rear Disc Brake Assembly Components With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
