Notes
Removal And Installation: Notes
Pre-removal operation
Brake Fluid Draining
Post-installation Operation
Brake Fluid Refilling and Air Bleeding (Refer to
BLEEDING
).
Brake Disk Runout Inspection/Correction (Refer to
LUBRICATION POINT BRAKE DISC CHECK
).

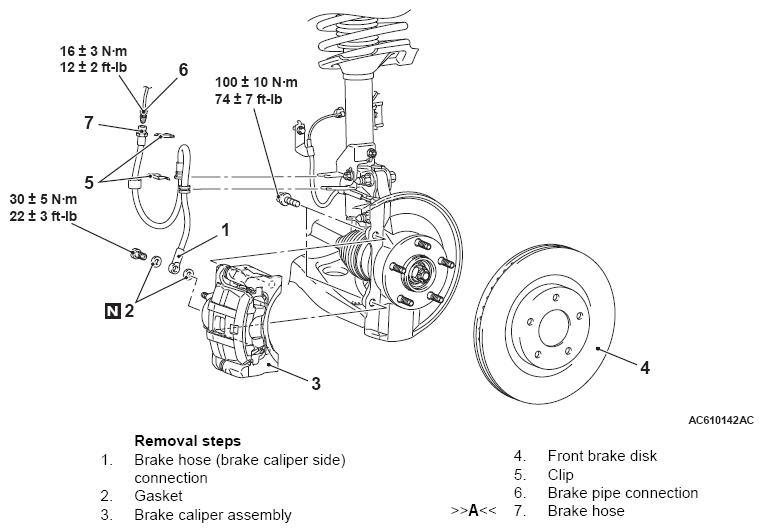

Fig 1: Removing/Installing Front Disc Brake Assembly Components With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
