Removal And Installation: Notes

Pre-removal and post-installation operation

• Liftgate upper trim removal and installation (Refer to LIFTGATE TRIM .)
• Rear washer hose (Liftgate side) connector connection removal and installation (Refer to REAR WIPER AND WASHER ).
• High-mount stop light connector connection removal and installation

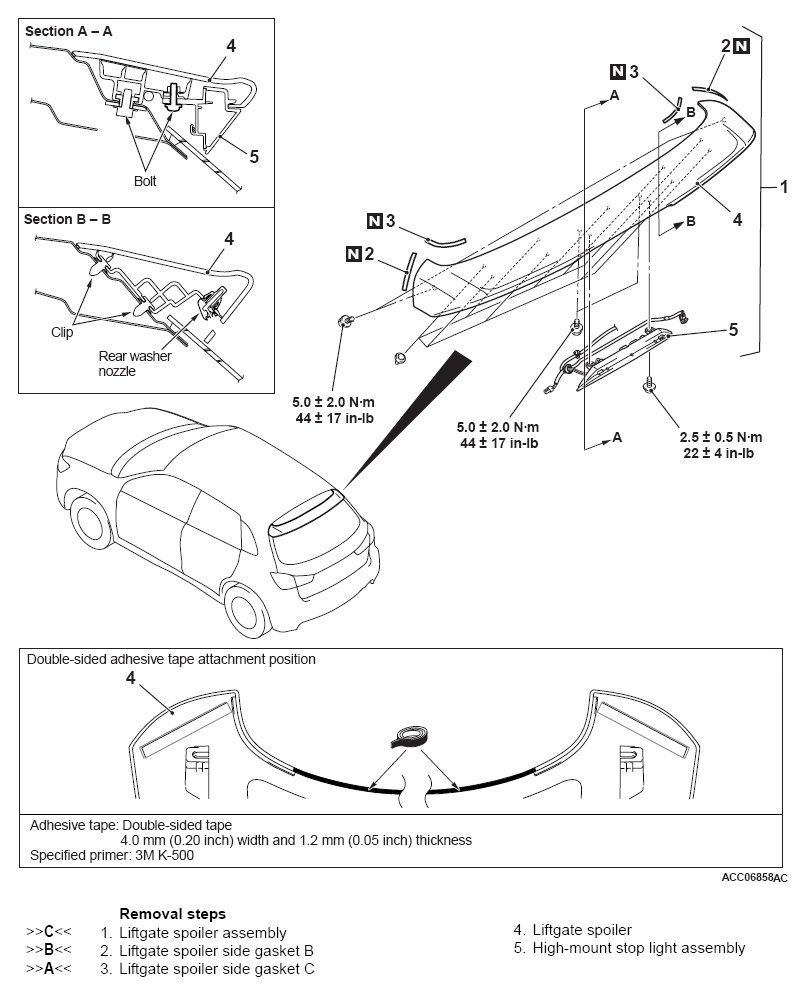

Fig 1: Removing/Installing Liftgate Spoiler Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
