"On/Off" Switch Check

  1. Turn the ignition switch to the "ON" position.
  2. Check that the "CRUISE" indicator light within the combination meter illuminates when the "ON/OFF" switch is pressed (cruise control system: ON.)
  3. Press the "ON/OFF" switch again (cruise control system: OFF), and check that the "CRUISE" indicator light within the combination meter goes out.
Fig 1: Locating Cruise Control Switch And ON/OFF Switch
G05431222Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

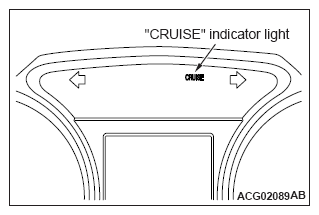

Fig 2: Locating Cruise Indicator Light
G12158094Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
