Disassembly And Reassembly: Notes

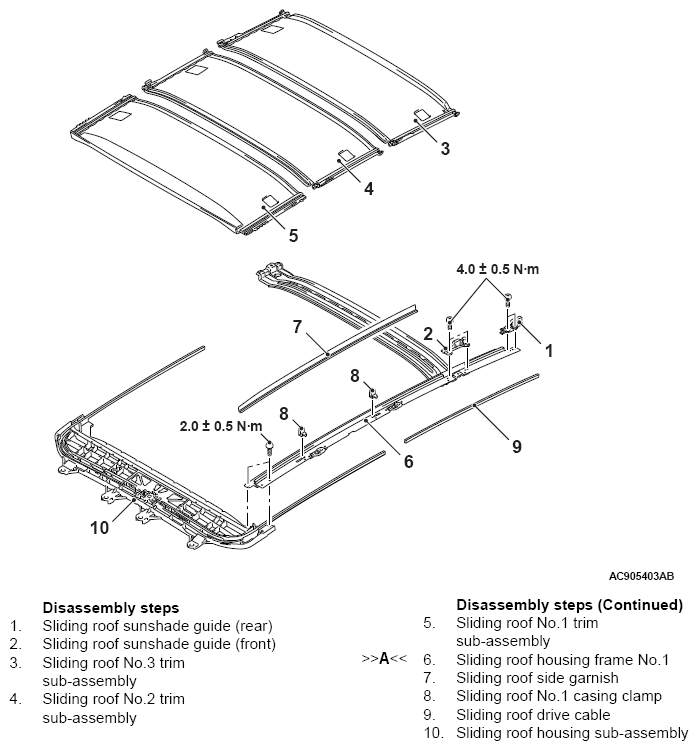

Fig 1: Disassembling/Assembling Sunshade Assembly Components With Torque Specification

G12161709

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
