Home >> Mitsubishi >> 2018 >> Outlander SEL, AWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> Configuration Diagrams >> Roof

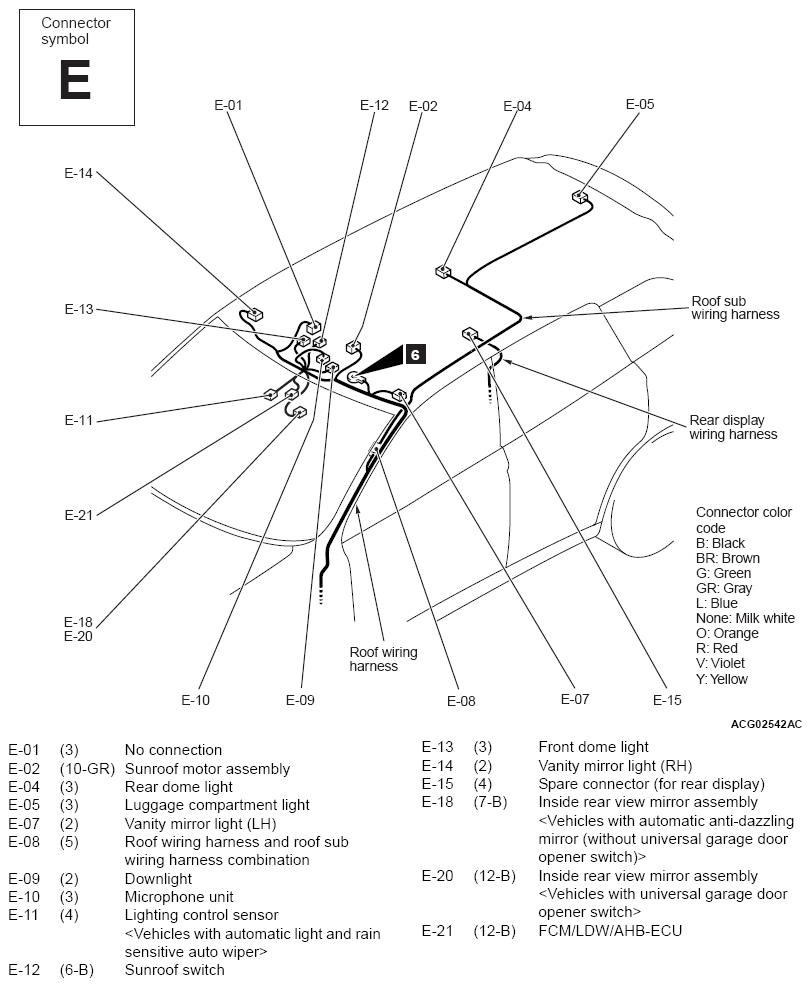

Configuration Diagrams: Roof

G12371157

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
