Engine Compartment <2.4L Engine>

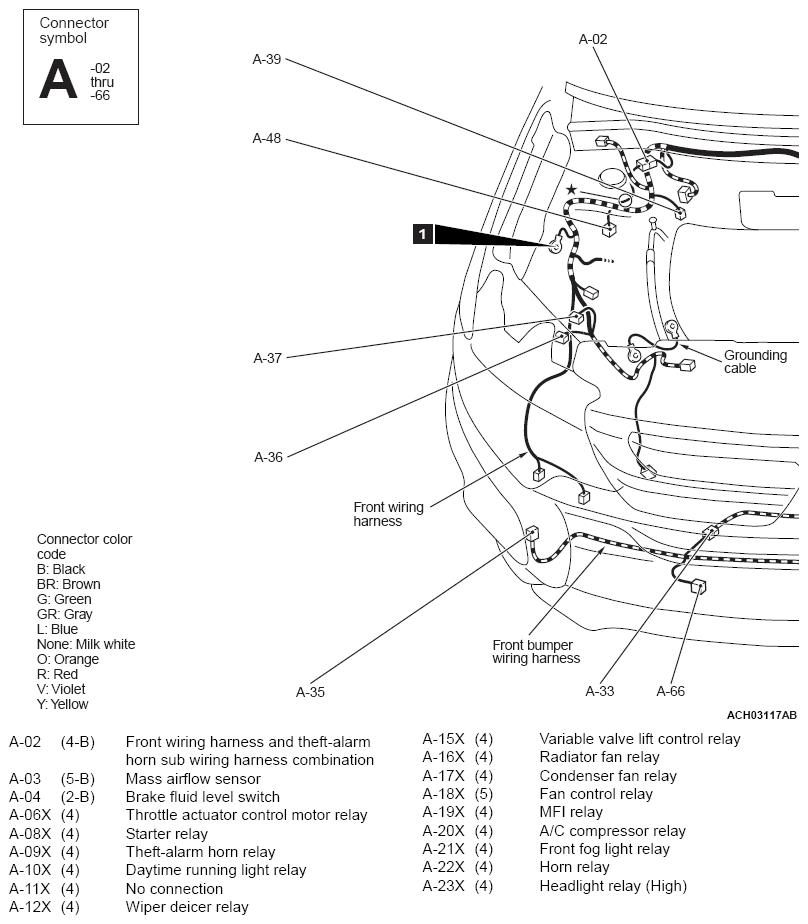

G12371129Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

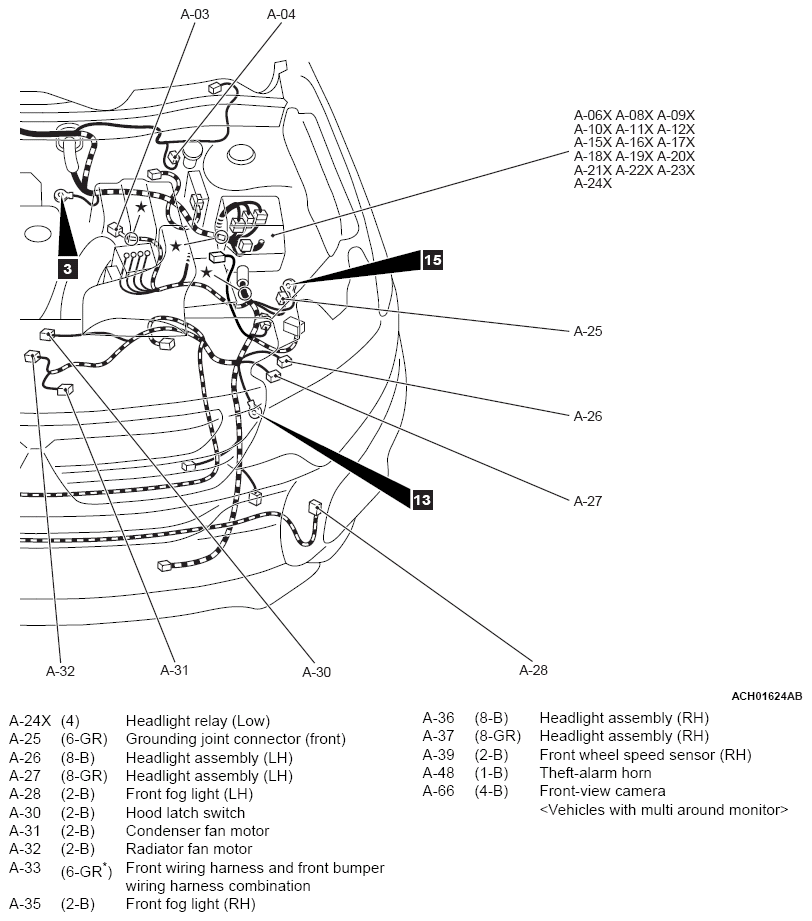

G12371130Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: The connector color marked by * indicates female side. The male-side connector color is black.

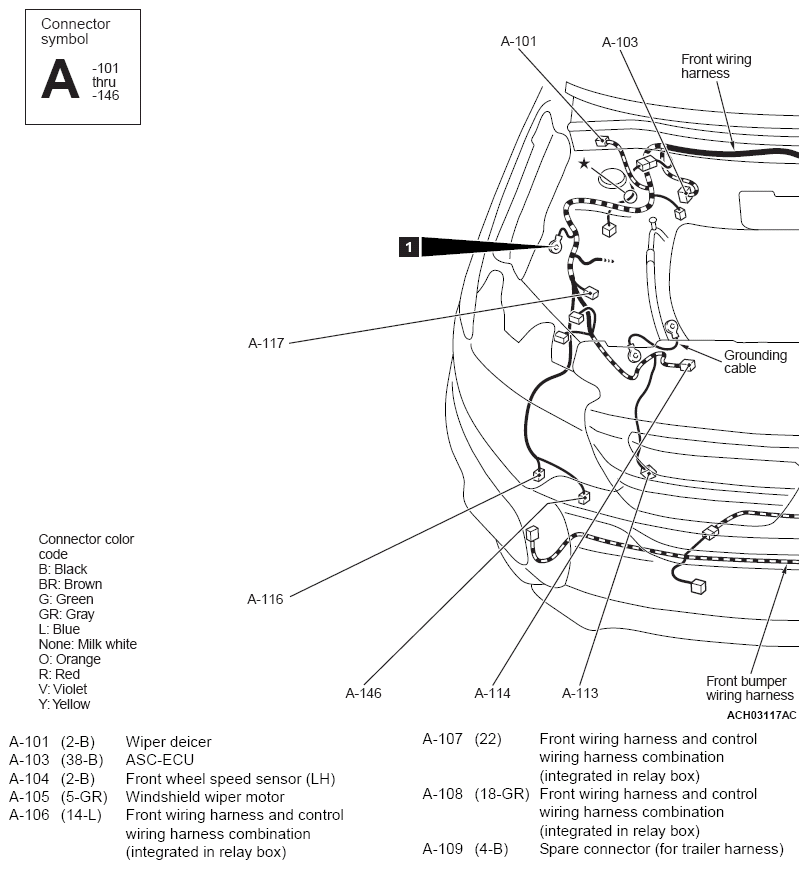

G12371131Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

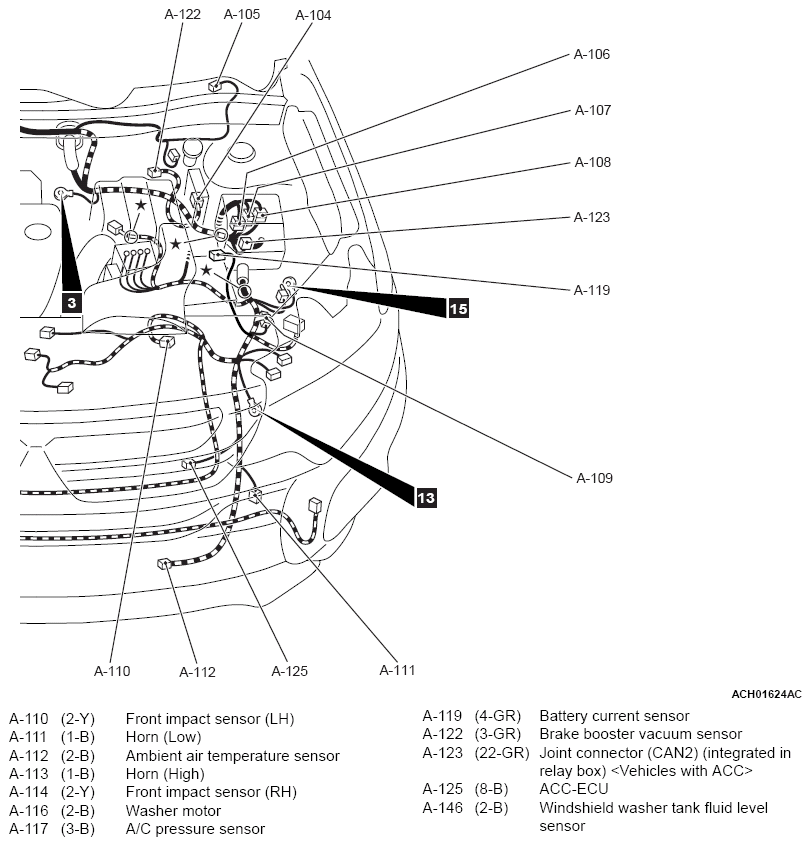

G12371132Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
