Removal And Installation: Notes

CAUTION:

Before removing the front seat assembly, refer to SIDE-AIRBAG MODULE(S) .
Before removing the front seat assembly, refer to OCCUPANT CLASSIFICATION SENSOR .

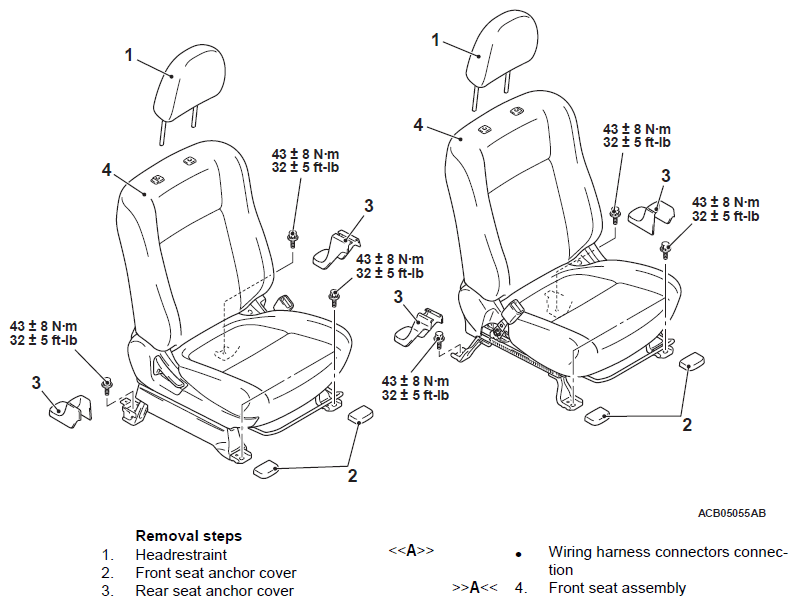

Fig 1: Removing/Installing Front Seat Assembly Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
