Removal And Installation

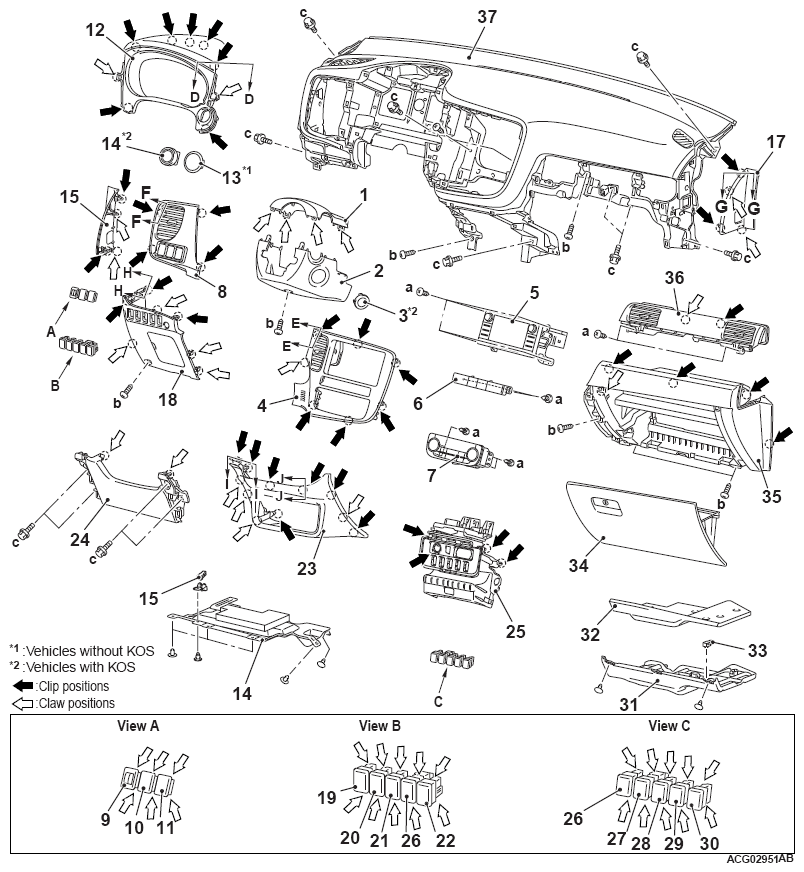

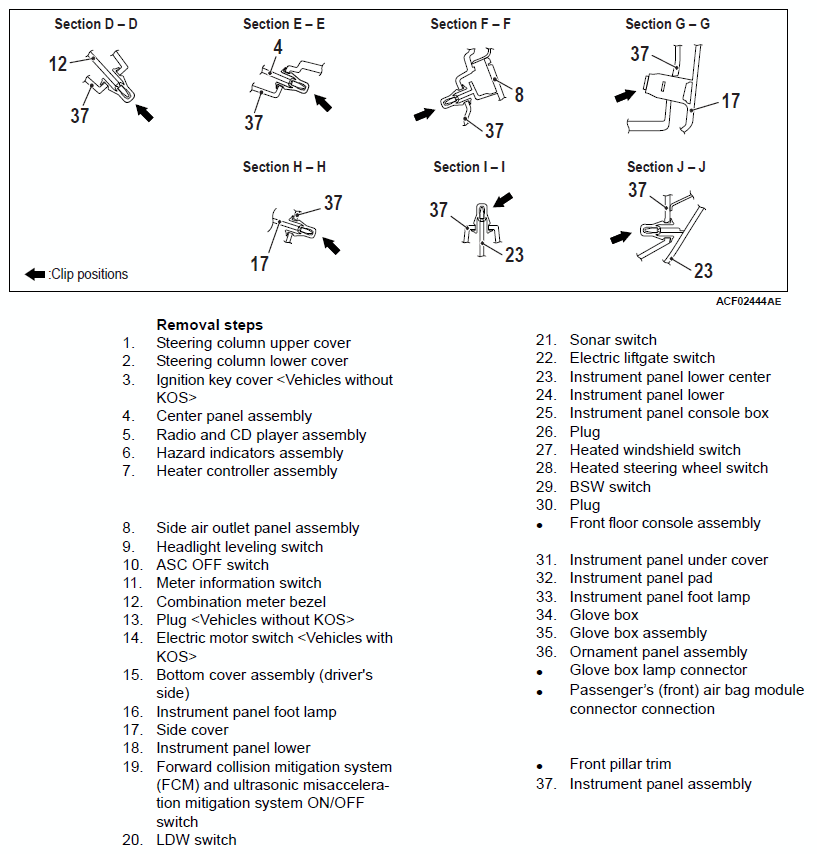

The following bolts and screws are used for installing the instrument panel: The bolts and screws are indicated by symbols in the illustrations in sections "REMOVAL AND INSTALLATION" and "DISASSEMBLY AND ASSEMBLY."
| Name | Symbol | Dimensions mm (in) (screw diameter x screw length) | Color | Shape |
|---|---|---|---|---|
| Tapping screw | a | 5 x 14 (0.20 x 0.55) | - | |
| b | 5 x 16 (0.20 x 0.63) | - | ||
| Bolt with washer | c | 6 x 16 (0.24 x 0.63) | - |
CAUTION:
- For the removal of the front passenger's air bag module, refer to DRIVER'S AIR BAG MODULE AND CLOCK SPRING before operation.
- Do not subject SRS-ECU to any shocks when removing or installing the instrument panel.
