Mitsubishi
>>
2018
>>
Outlander SE, FWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Ignition System
>>
Engine Overhaul - 2.4L
>>
Valve Lift Control Motor
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

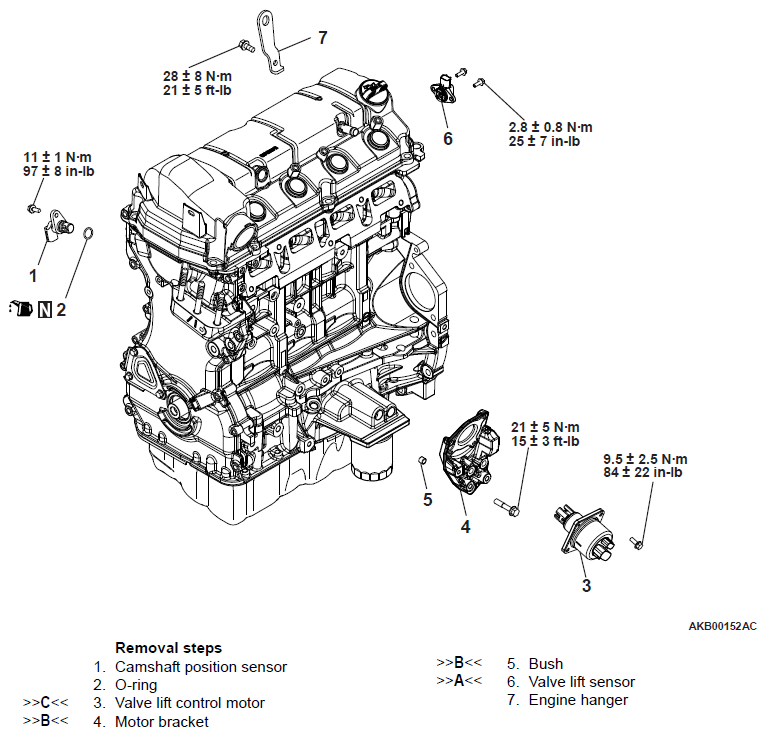

Fig 1: Removing/Installing Valve Lift Control Motor Components With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
