Disassembly And Reassembly <2.4L Engine>
>>
Notes
Disassembly And Reassembly <2.4L Engine>: Notes

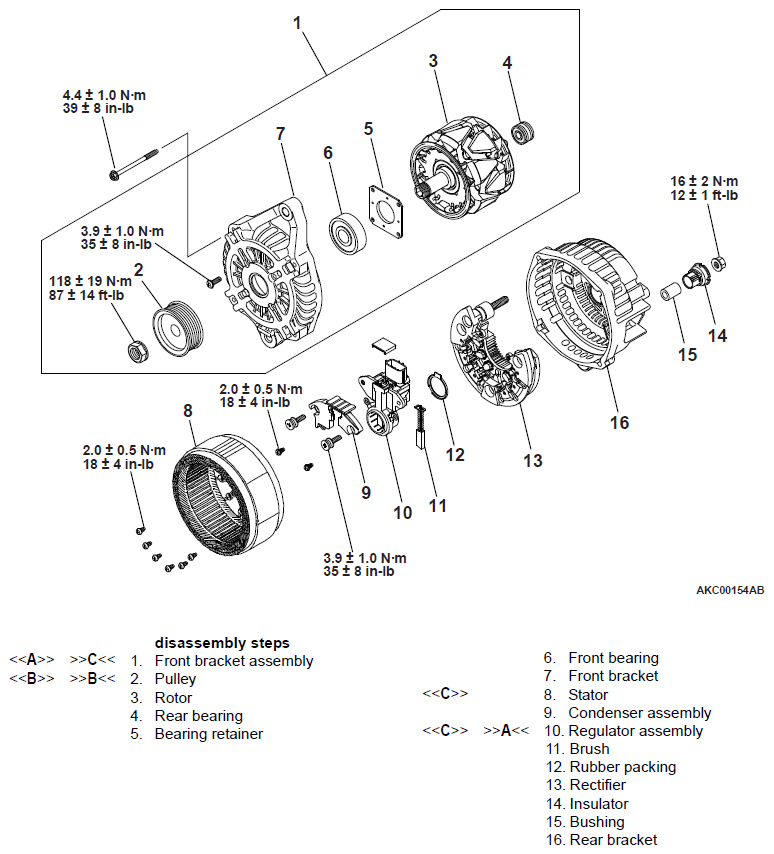

Fig 1: Disassembling/Assembling Generator Assembly Components With Torque Specification - 2.4L Engine
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
