Home >> Mitsubishi >> 2018 >> Outlander PHEV SEL >> Repair and Diagnosis >> Electrical >> Body Electrical >> Splice Locations >> Roof

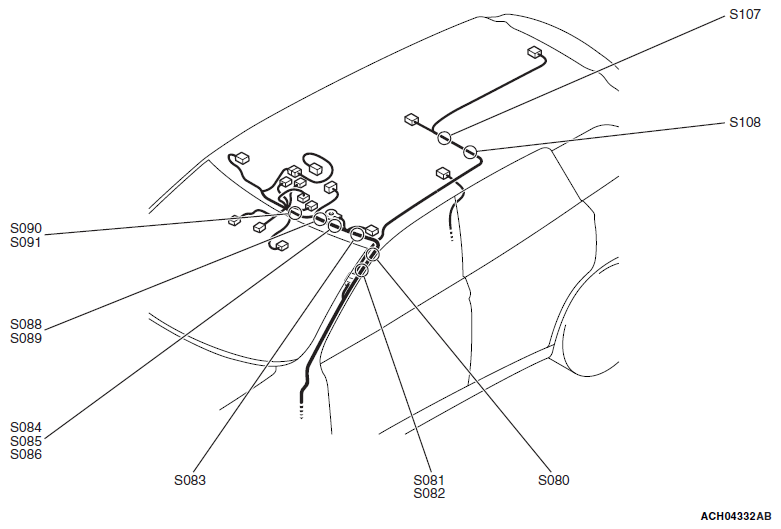

Splice Locations: Roof

G12377318

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
