Heated Seat Relay Continuity Check

Battery voltage Terminal number Normal value
At no energization 3 - 4 No continuity
At energization [terminal No. 2 (+) - terminal No. 1 (-)] Continuity exists (2 Ω or less).

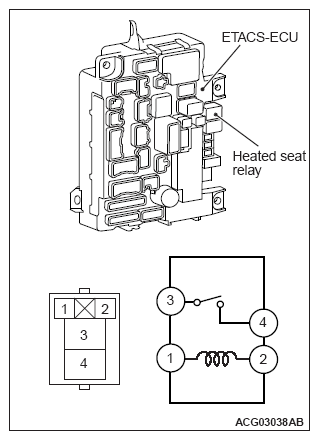

G12127350Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
