Removal And Installation <3.0L Engine>: Notes

Pre-removal Operation  Fuel Discharge Prevention (Refer to REDUCE PRESSURIZED FUEL LINES ). Intake Manifold Plenum Removal (Refer to INTAKE MANIFOLD PLENUM <3.0L ENGINE> ).

Post-installation Operation  Intake Manifold Plenum Installation (Refer to INTAKE MANIFOLD PLENUM <3.0L ENGINE> ). Fuel Leakage Inspection

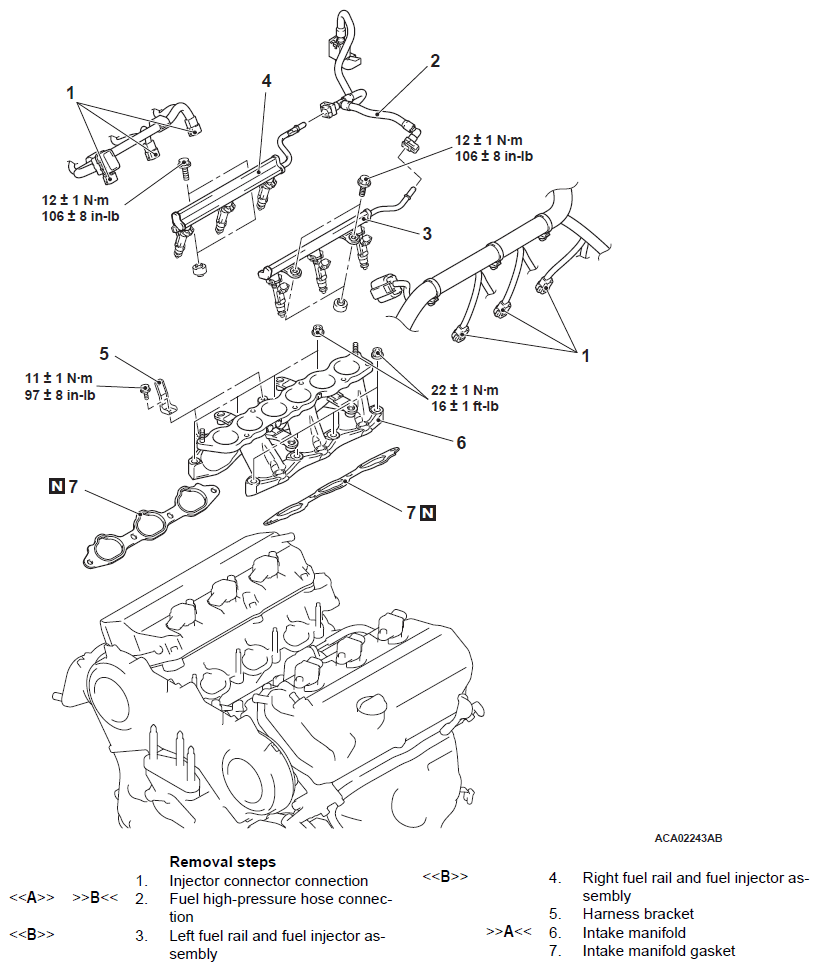

Fig 1: Removing/Installing Intake Manifold Components With Torque Specification - 3.0L Engine

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
