Disassembly And Reassembly
Disassembly And Reassembly

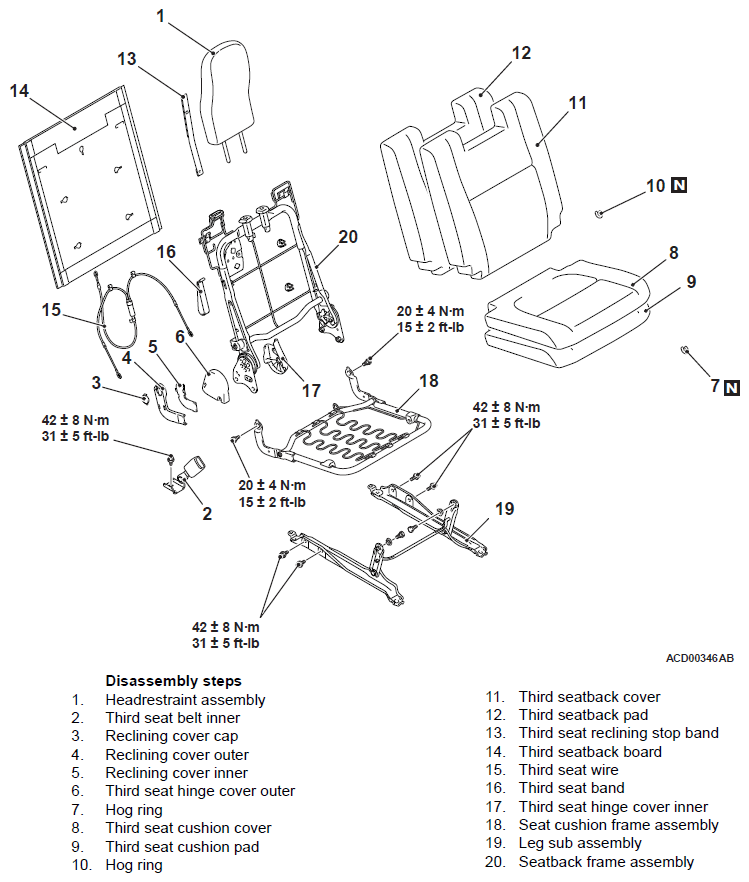

Fig 1: Disassembling/Assembling Third Seat Assembly Components With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
