Dash Panel

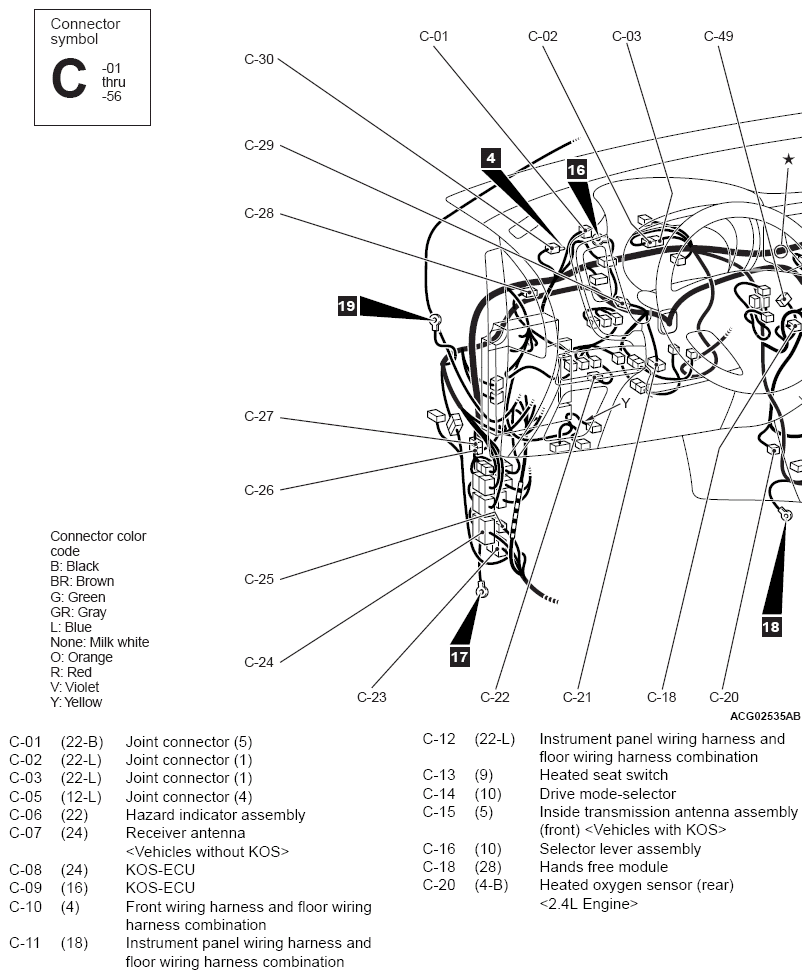

G12371145Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

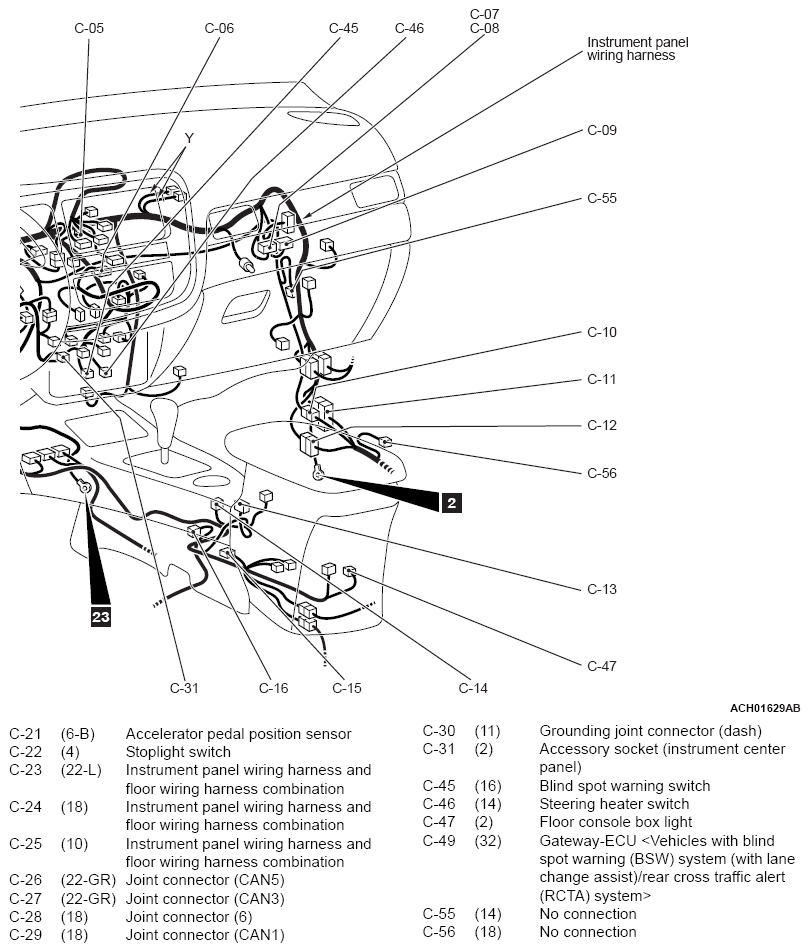

G12371146Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

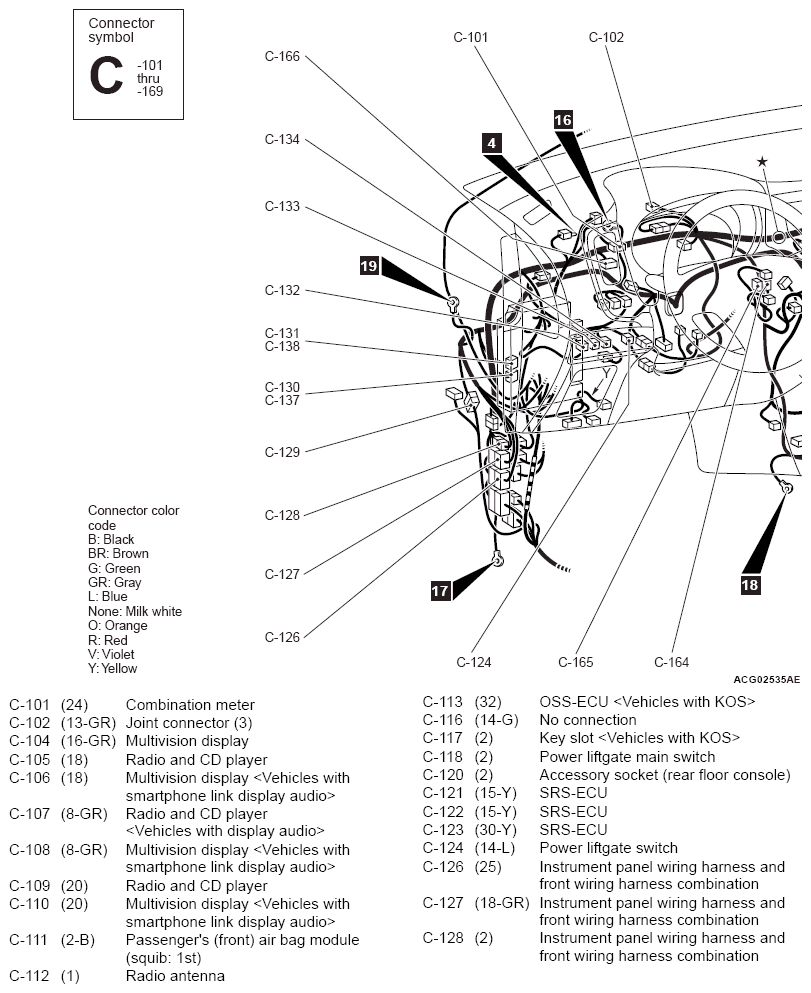

G12371147Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

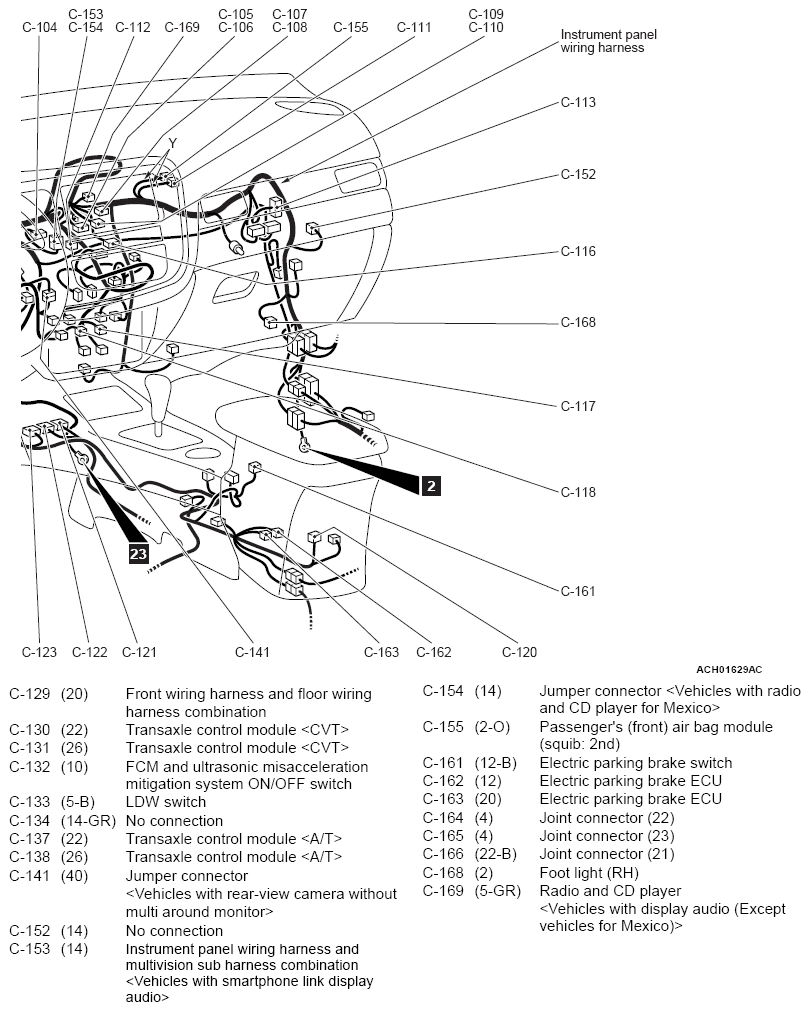

G12371148Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

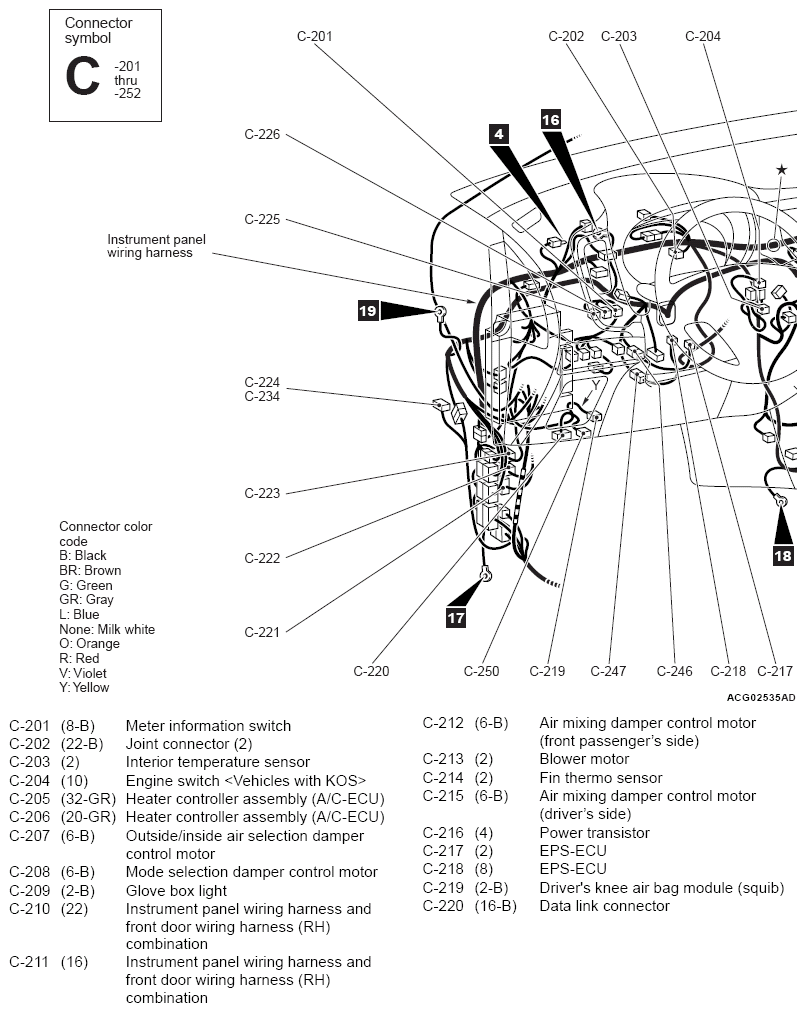

G12371149Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

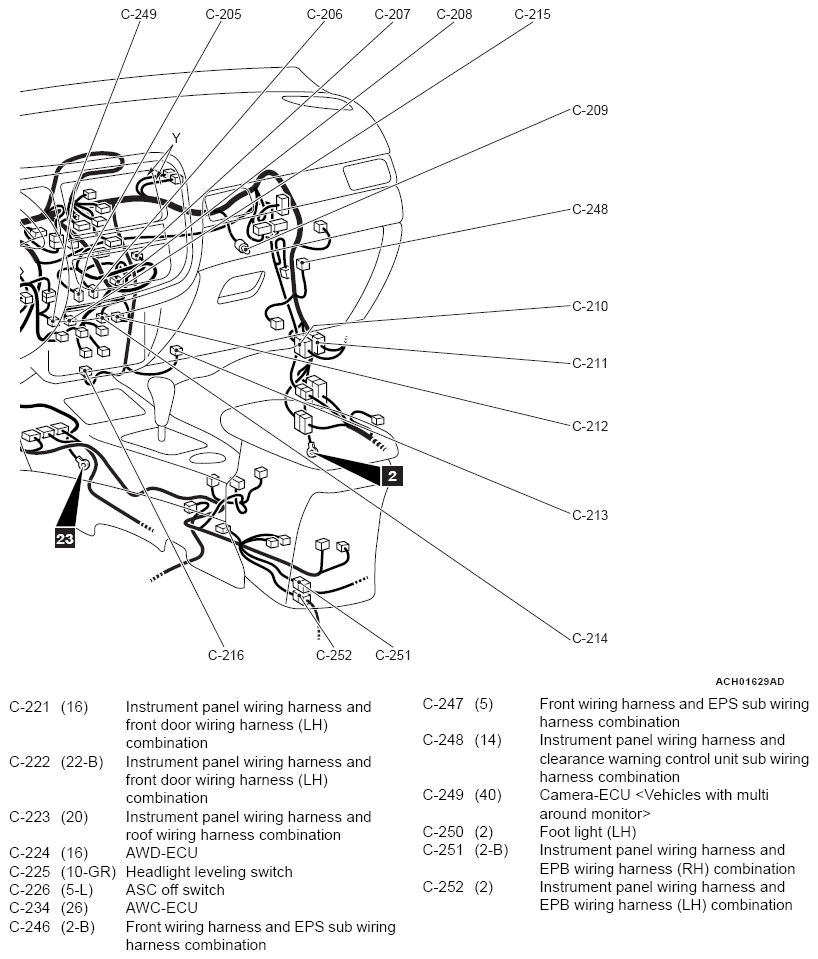

G12371150Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

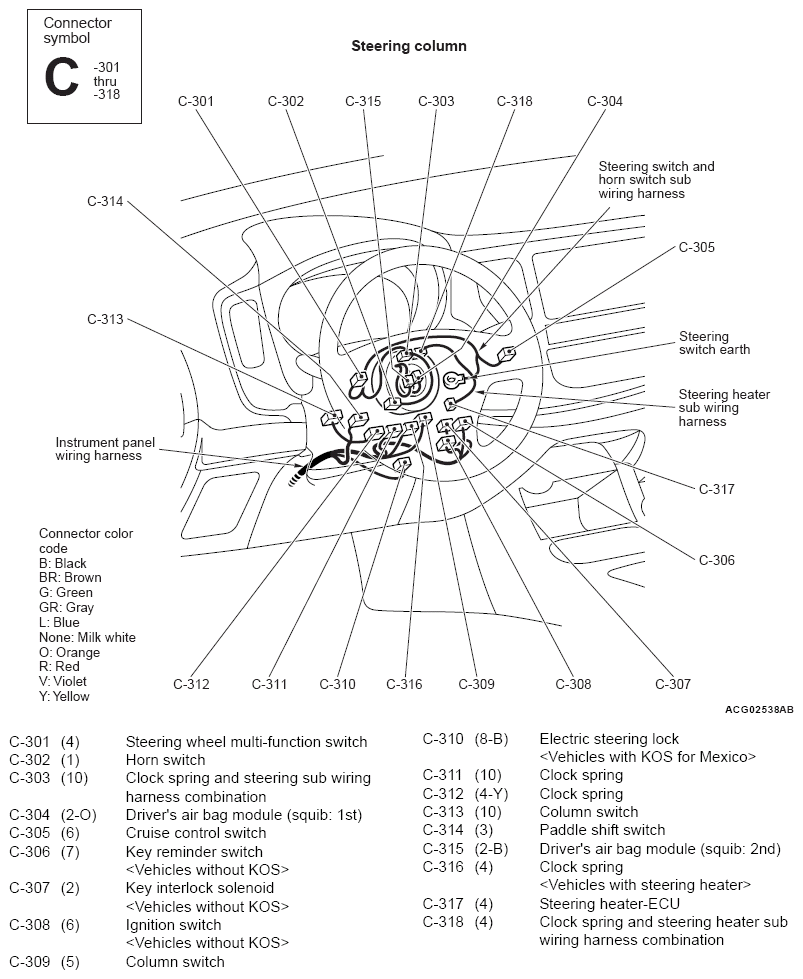

G12371151Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

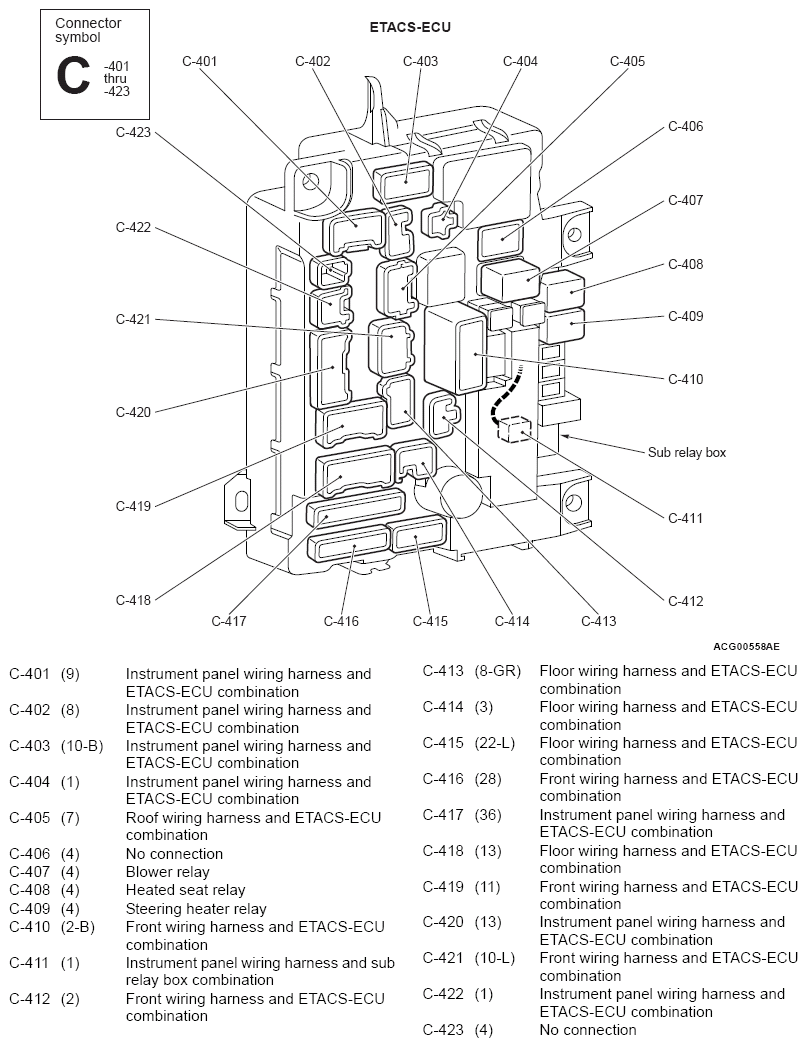

G12371152Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
