Configuration Diagrams: Liftgate

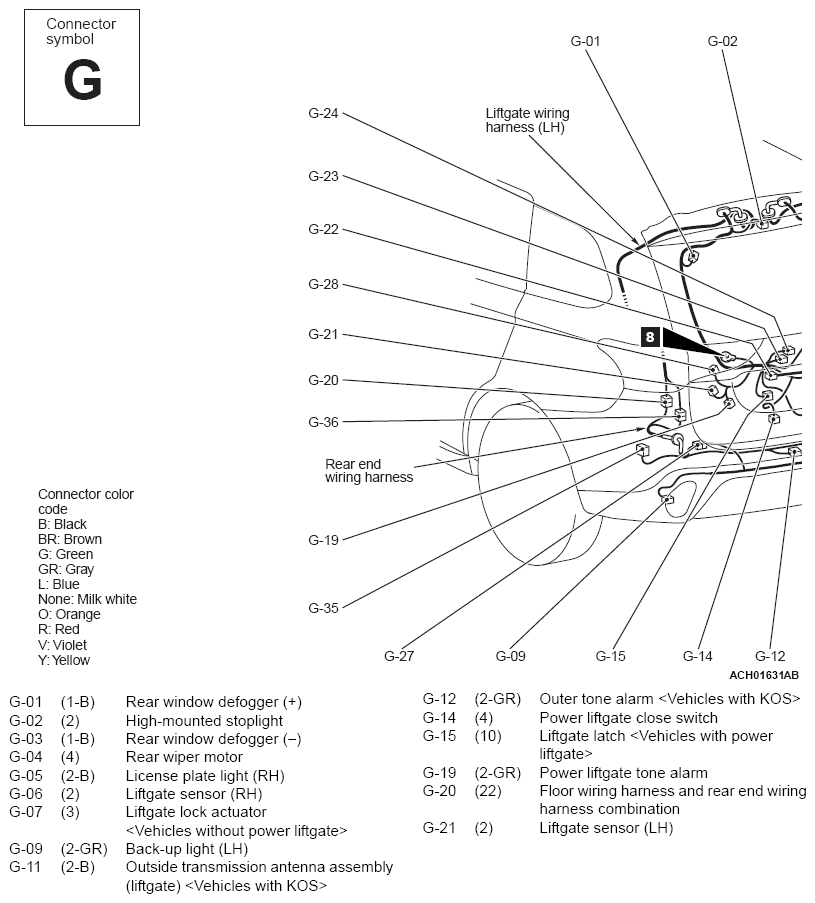

G12371160

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

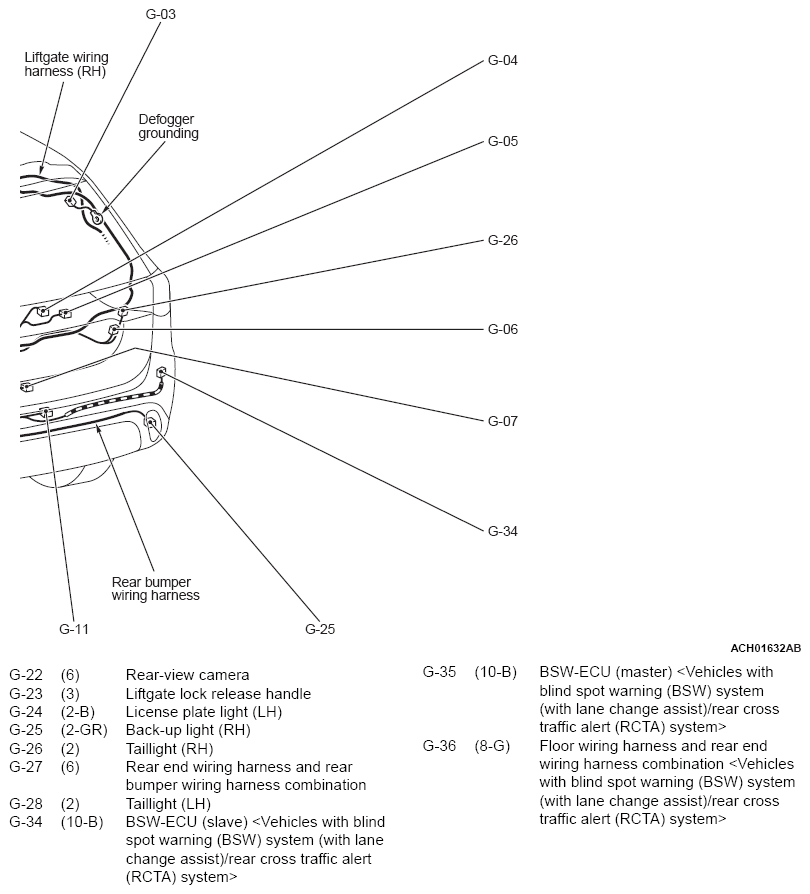

G12371161

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
