Removal And Installation: Notes

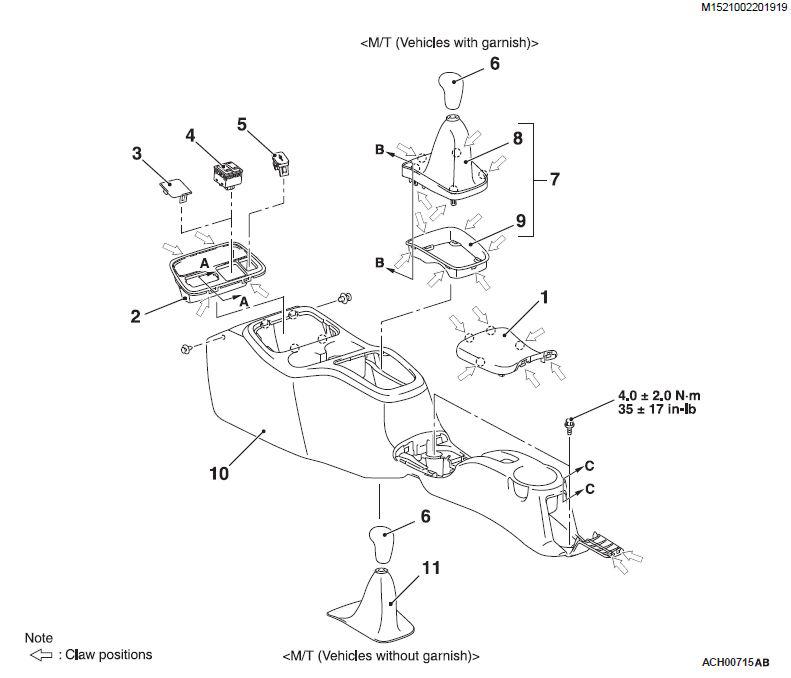

Fig 1: Exploded View Of Floor Console Assembly with torque specifications (1 of 2)
G00578934Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

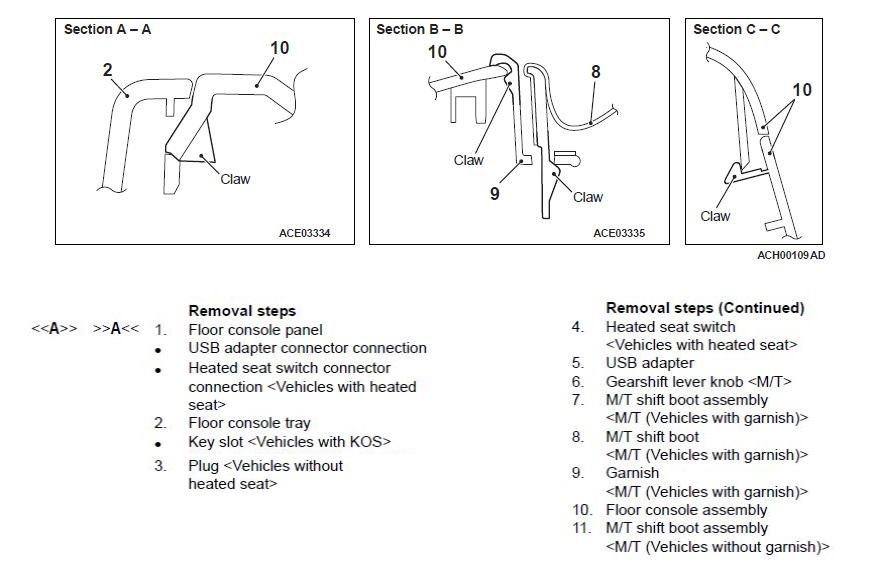

Fig 2: Exploded View Of Floor Console Assembly (2 of 2)
G00578935Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
