Control Unit

Name	Symbol
ASC-ECU	A
Auto A/C controller assembly (A/C-ECU)	D
Column switch (incorporating column-ECU)	B
Combination meter (incorporating CPU)	C
Transaxle control module <CVT>	H
Engine control module	H
Electric power steering-ECU	I
ETACS-ECU	G
KOS and OSS-ECU	E
Occupant classification-ECU	K
PTC heater control unit	F
Power window main switch (incorporating CPU) <Vehicles with safety system>	L
SRS-ECU	J

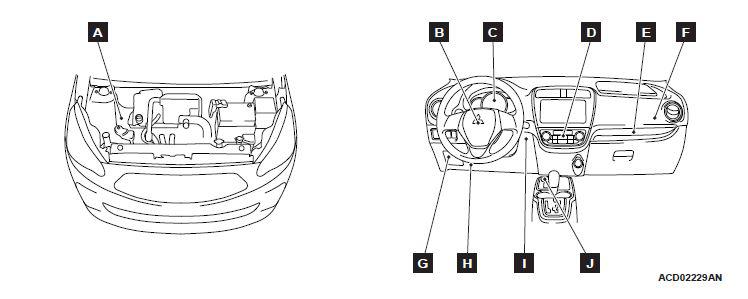

Fig 1: Control Unit Component Locations (1 Of 15)

G00578993

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

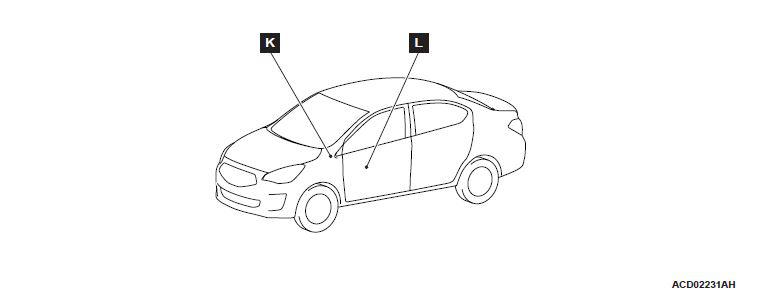

Fig 2: Control Unit Component Locations (2 Of 15)

G00578994

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Control Unit Component Locations (3 Of 15)

G11460879

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Control Unit Component Locations (4 Of 15)

G11460880

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 5: Control Unit Component Locations (5 Of 15)

G11460881

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 6: Control Unit Component Locations (6 Of 15)

G00578995

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

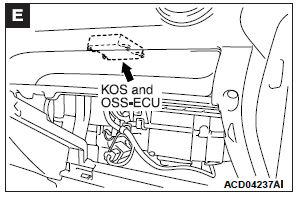

Fig 7: Control Unit Component Locations (8 Of 15)

G00578996

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 8: Control Unit Component Locations (9 Of 15)

G00578997

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 9: Control Unit Component Locations (10 Of 15)

G00578998

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 10: Control Unit Component Locations (11 Of 15)

G00578999

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 11: Control Unit Component Locations (12 Of 15)

G00579000

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 12: Control Unit Component Locations (13 Of 15)

G00579001

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 13: Control Unit Component Locations (14 Of 15)

G00579002

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 14: Control Unit Component Locations (15 Of 15)

G00579003

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
