Removal And Installation: Notes

<M/T>

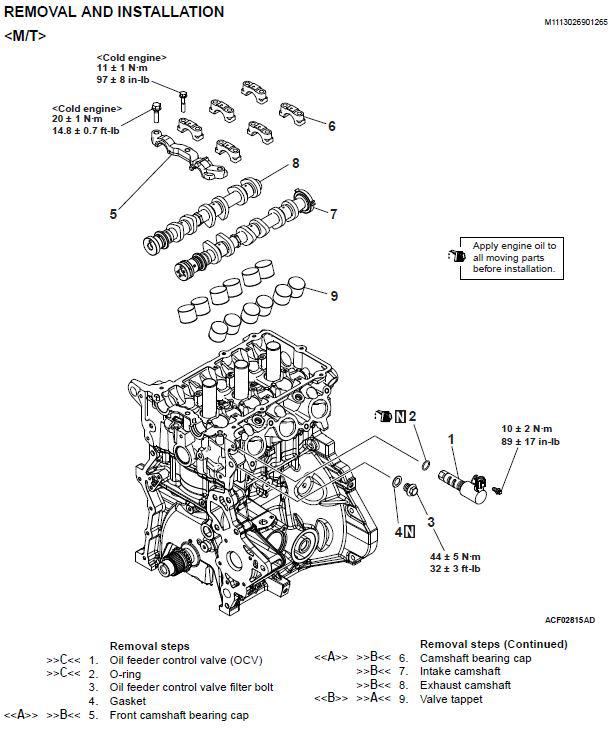

Fig 1: Installation/Removal Of Camshaft Assembly With Torque Specifications (M/T)
G00578953Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

<CVT>

Fig 2: Installation/Removal Of Camshaft Assembly With Torque Specifications (CVT)
G11479559Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
