Removal And Installation: Notes

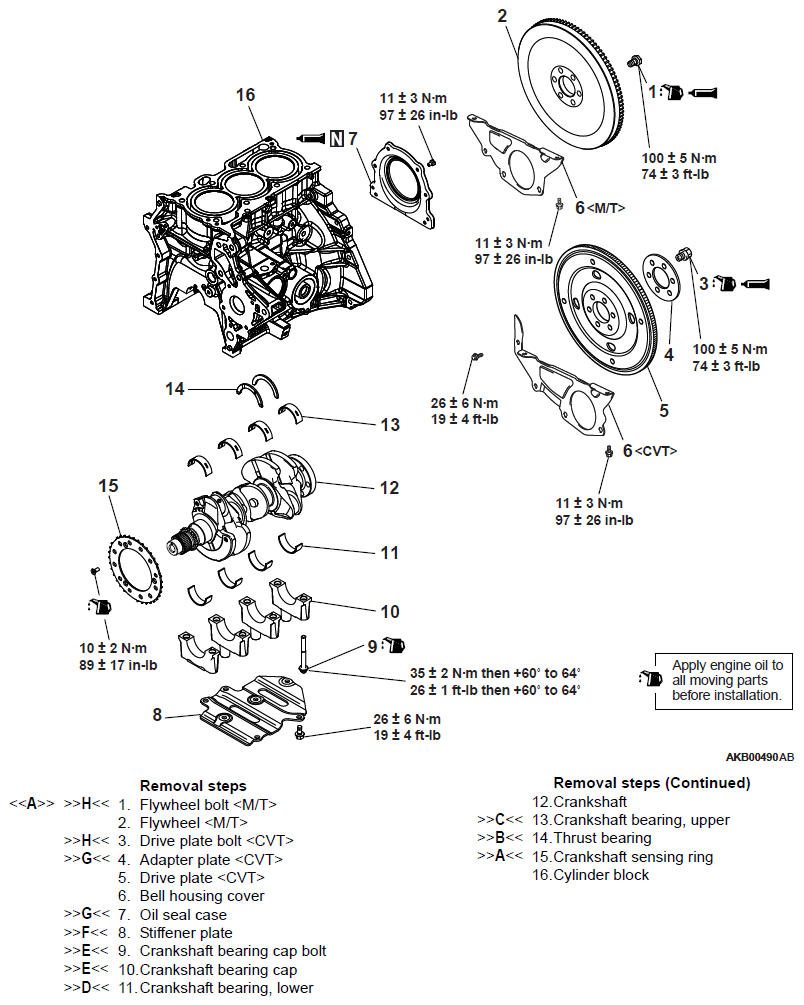

Fig 1: Removal/Installation Of Crankshaft And Cylinder Block With Torque Specifications
G11479617Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
