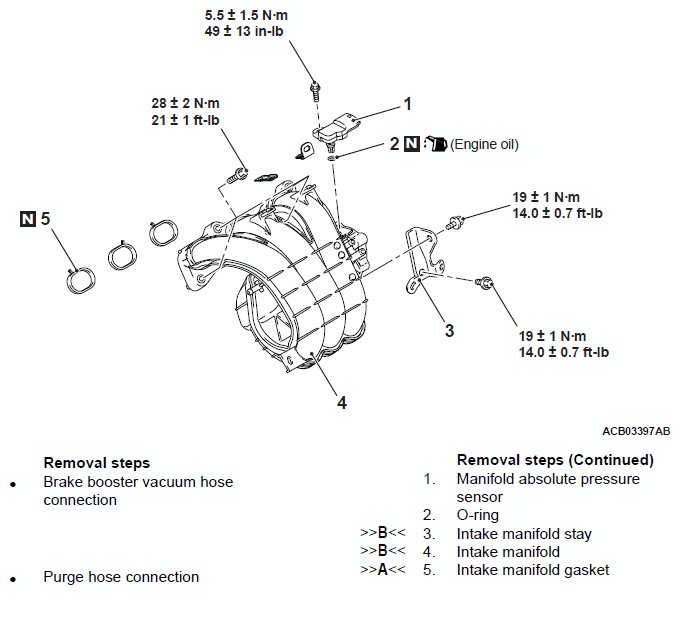

Removal And Installation: Notes
CAUTION:
- When removing or installing the manifold absolute pressure sensor, be careful not to apply impact to the sensor.
- Do not reuse the manifold absolute pressure sensor that has been dropped.
Pre-removal Operation
|
Post-installation Operation
|
