Instrument Panel

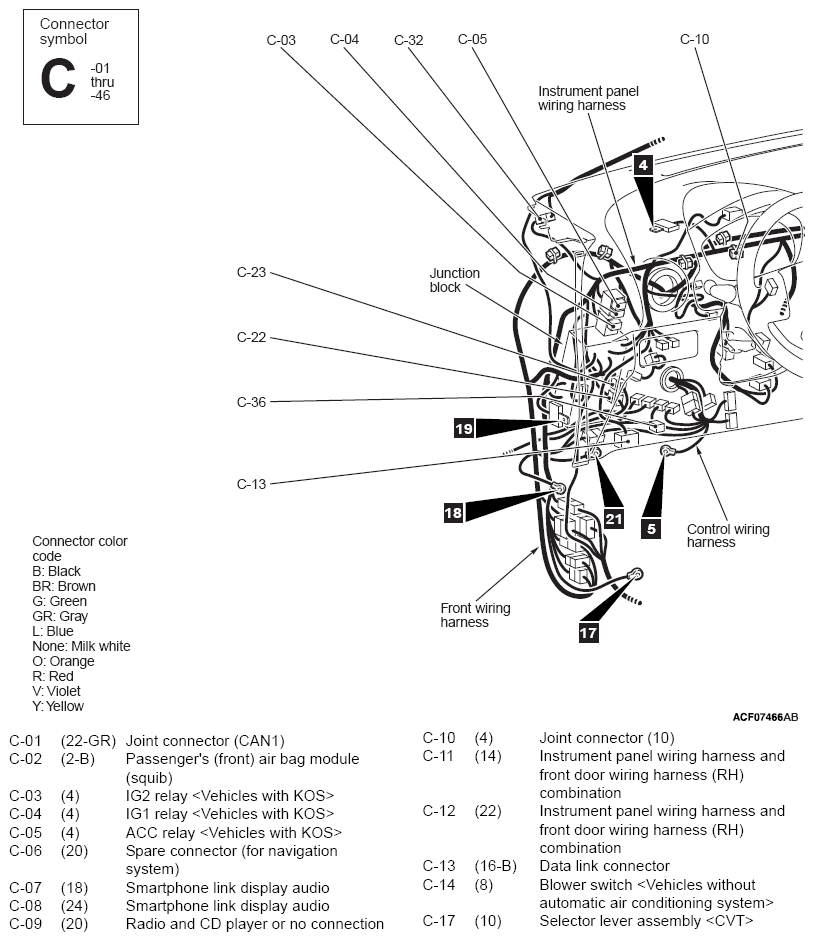

G12366186Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

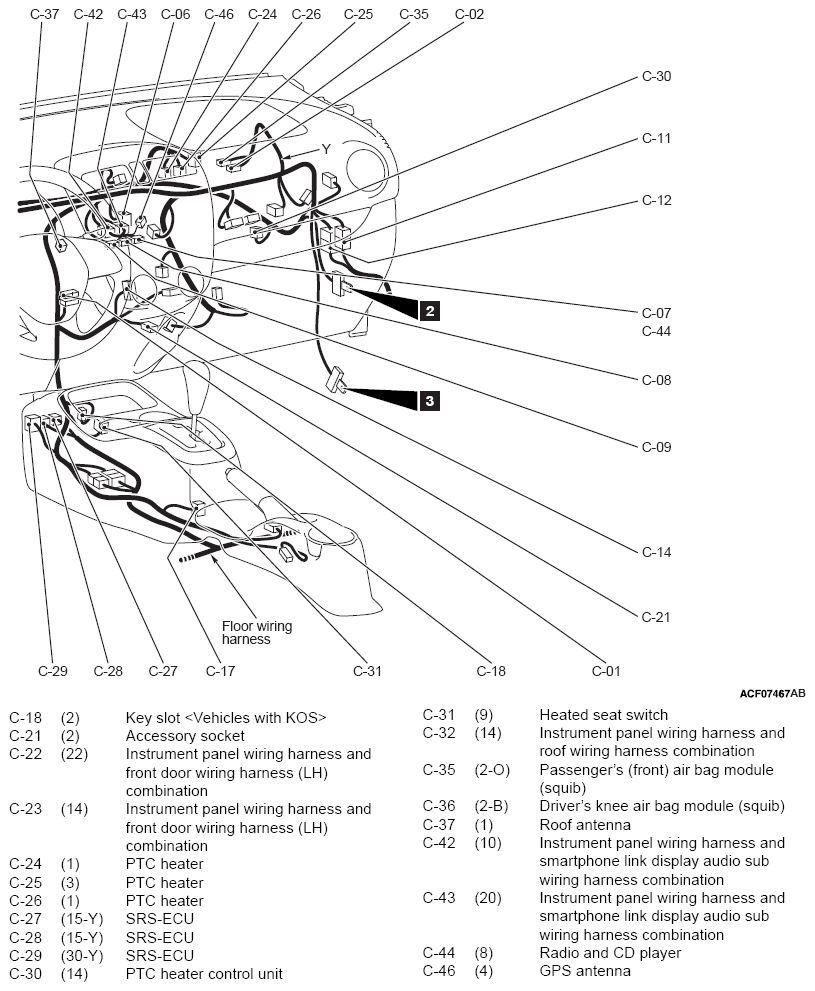

G12366187Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

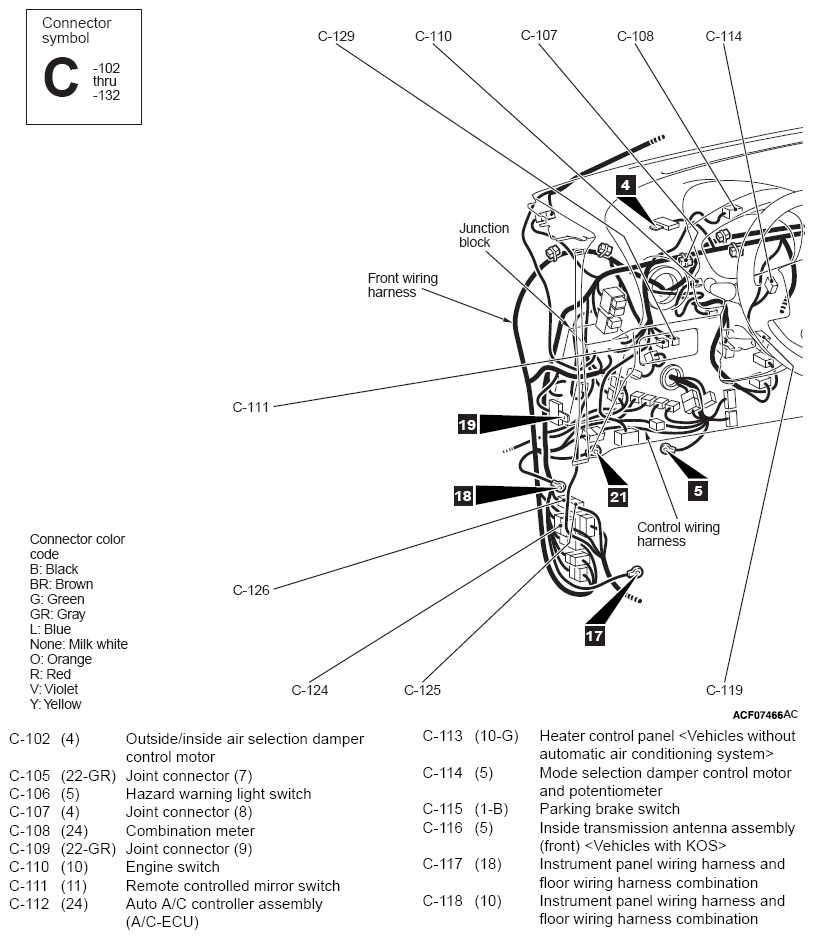

G12366188Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

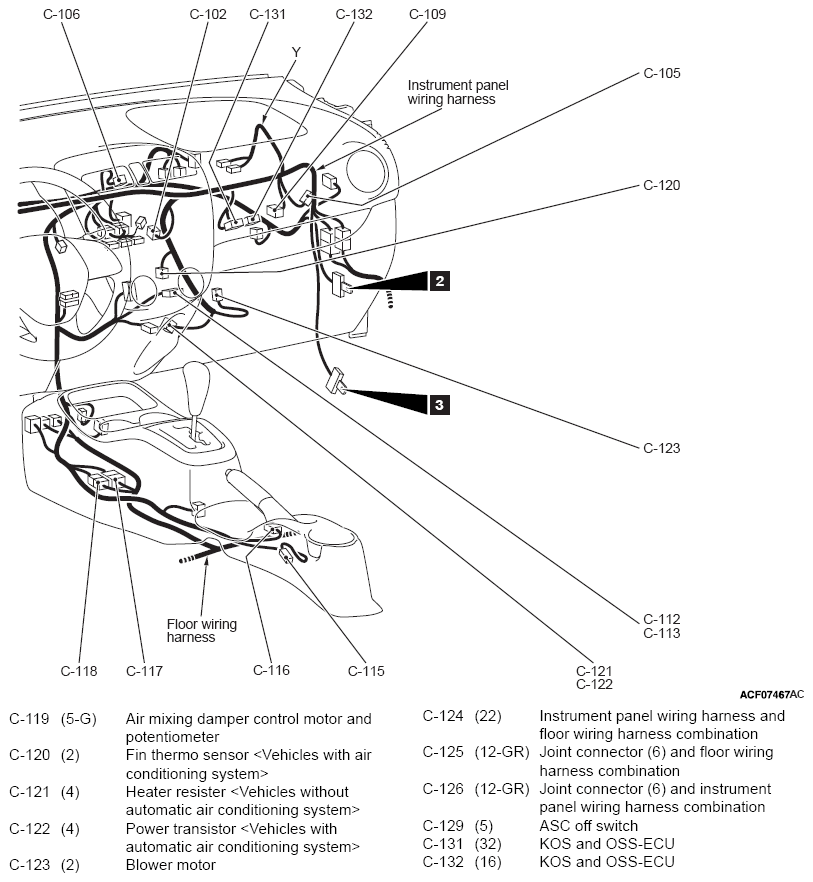

G12366189Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

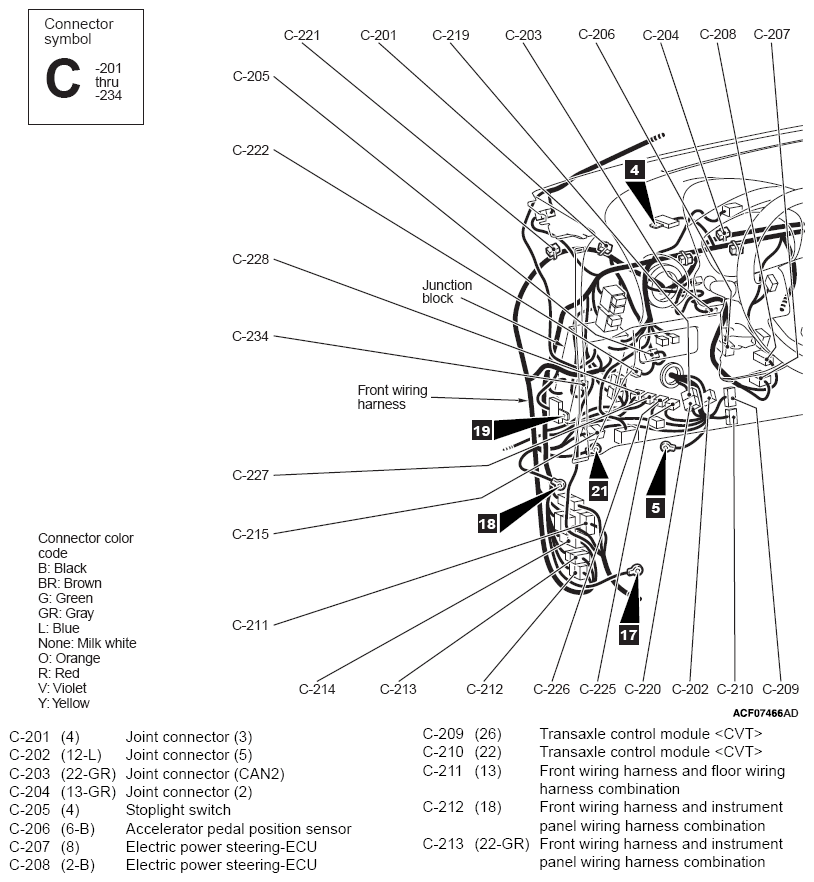

G12366190Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

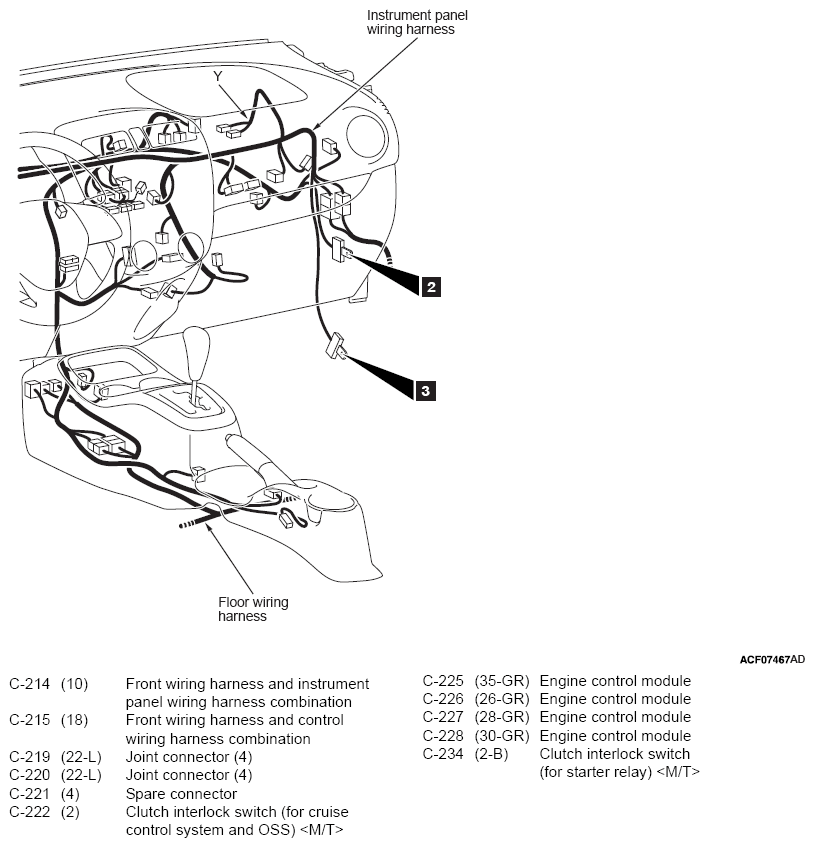

G12366191Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

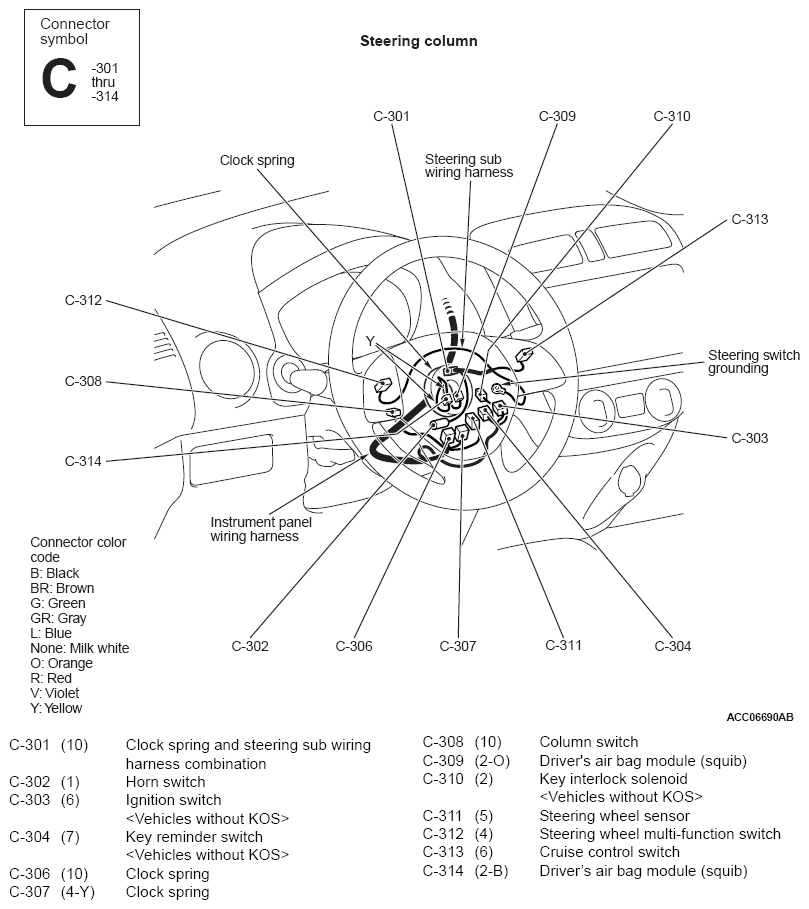

G12366192Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

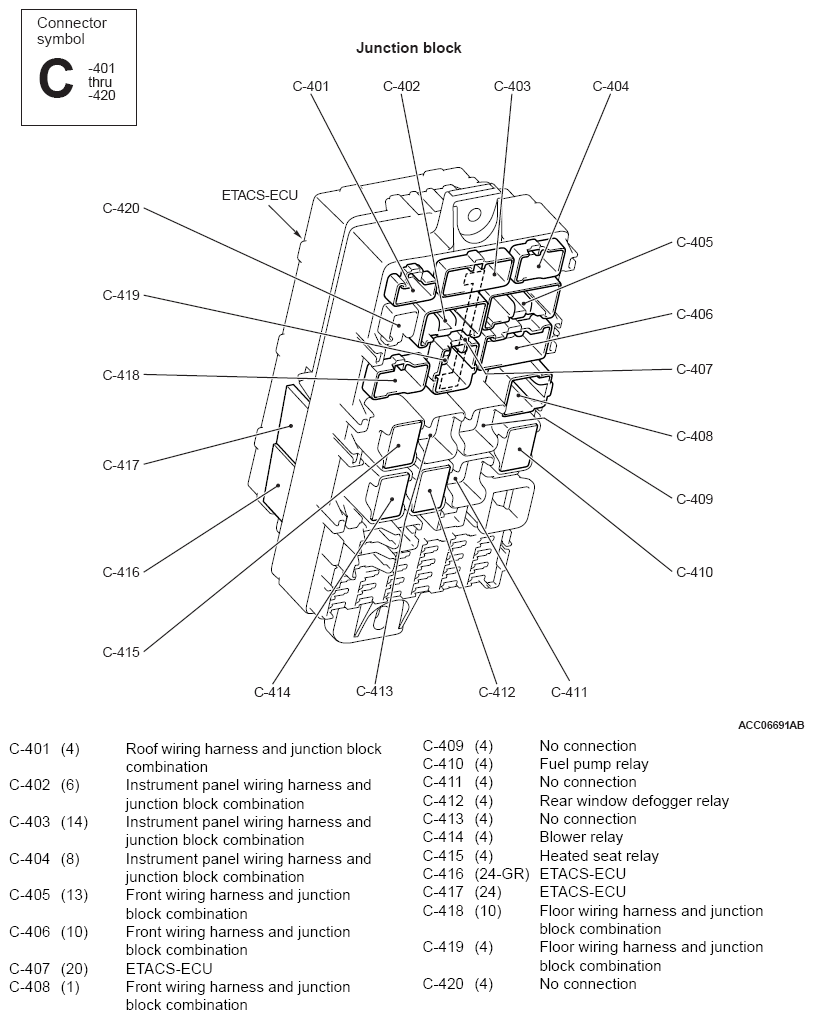

G12366193Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
