Configuration Diagrams: Floor

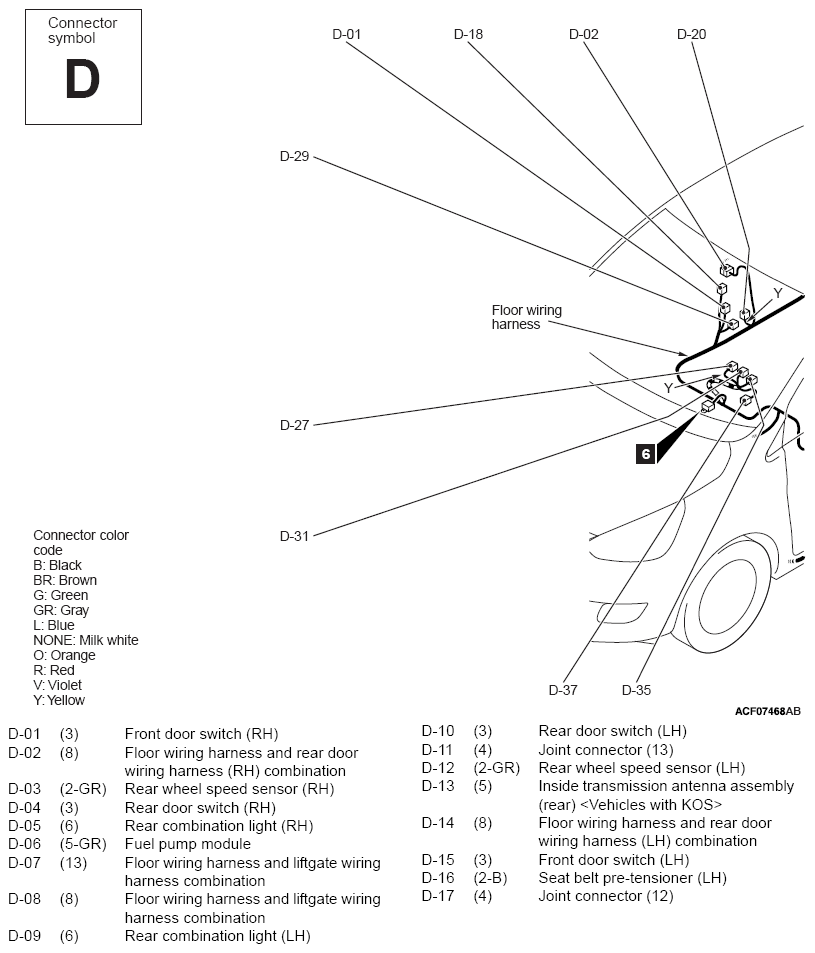

G12366194

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

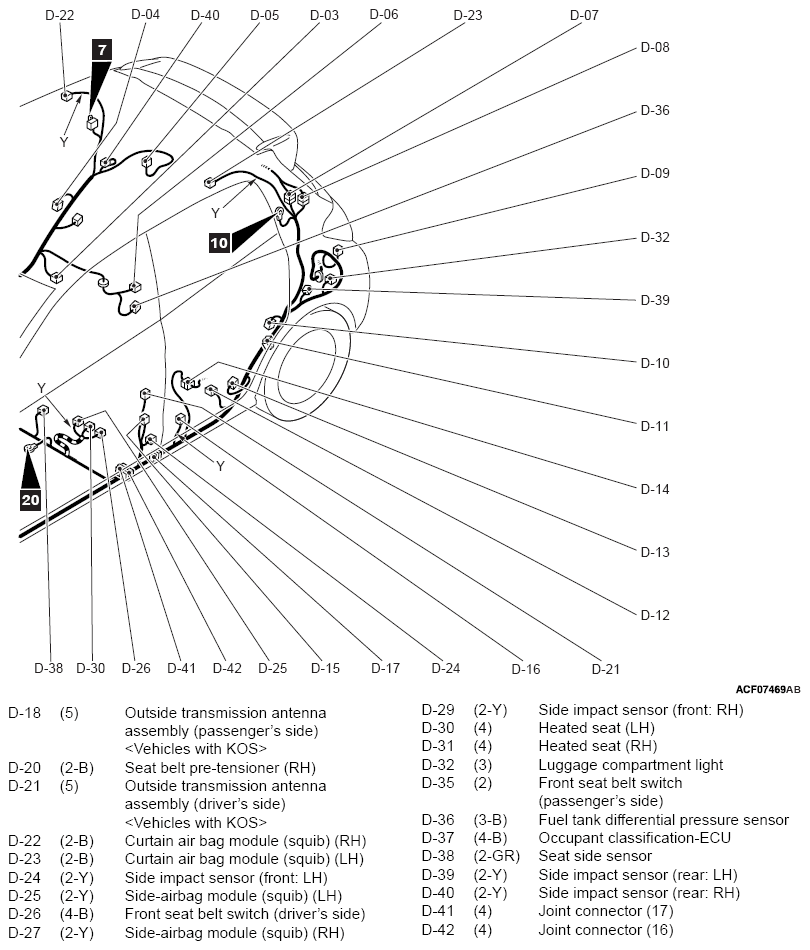

G12366195

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
