Engine Compartment

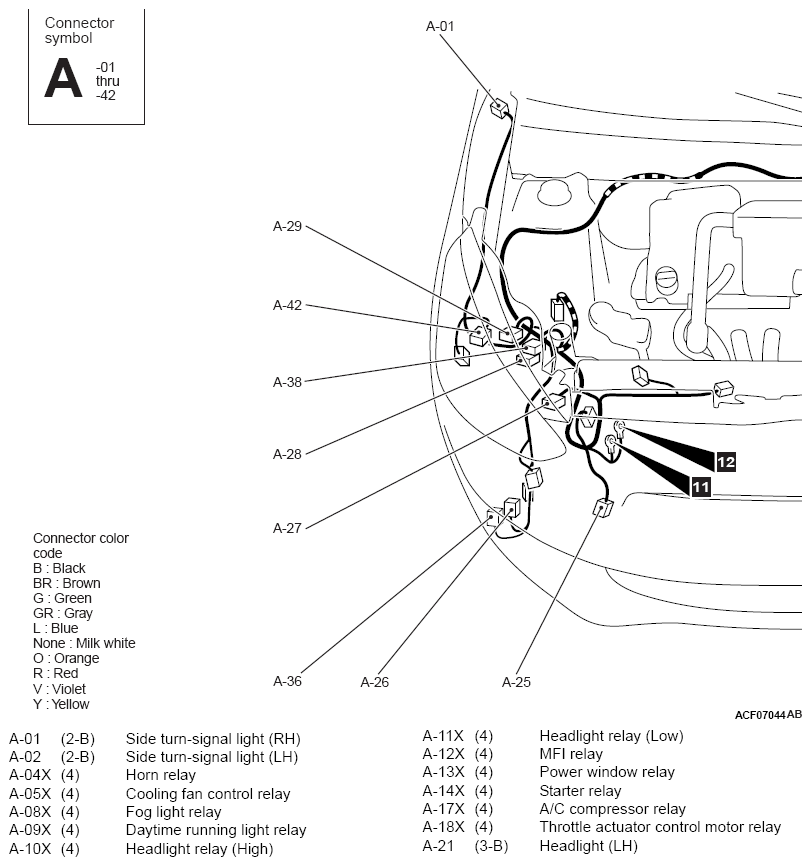

G12366178Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

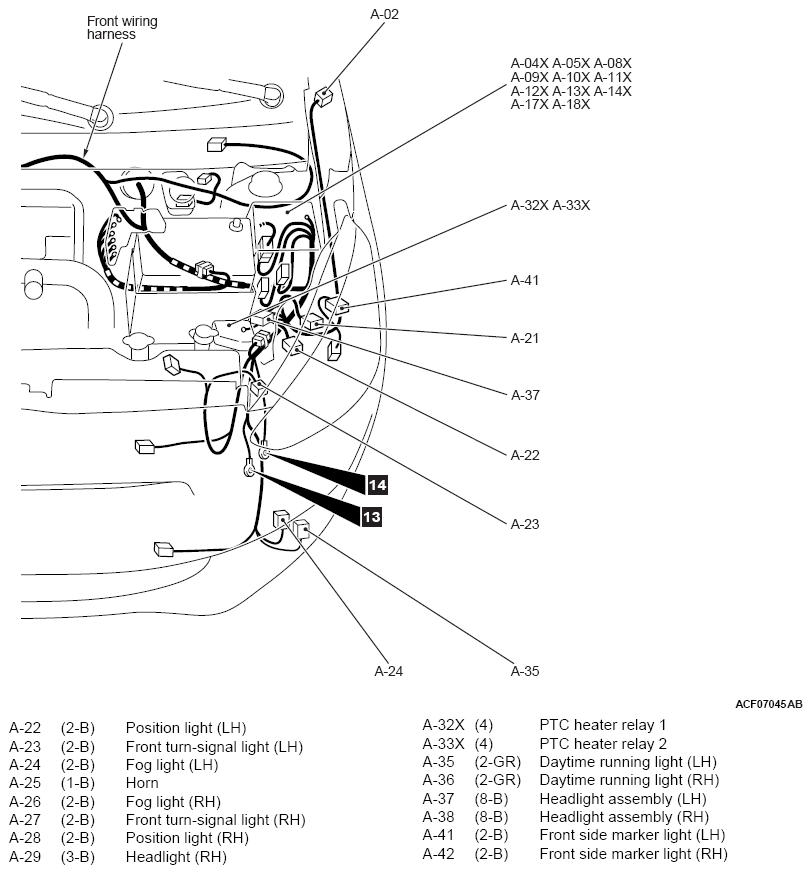

G12366179Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

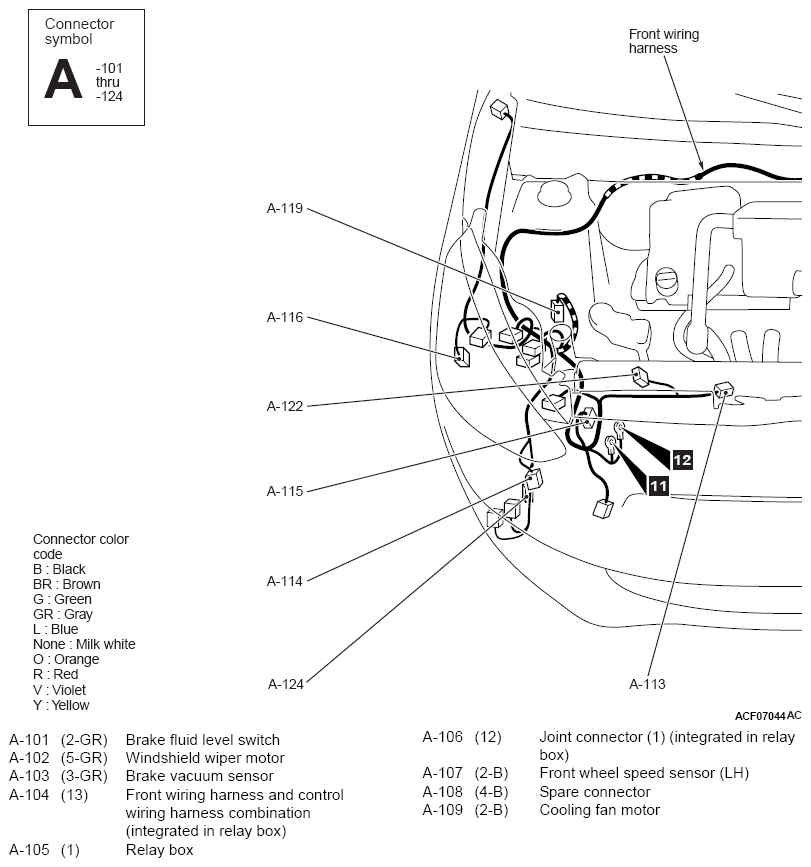

G12366180Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

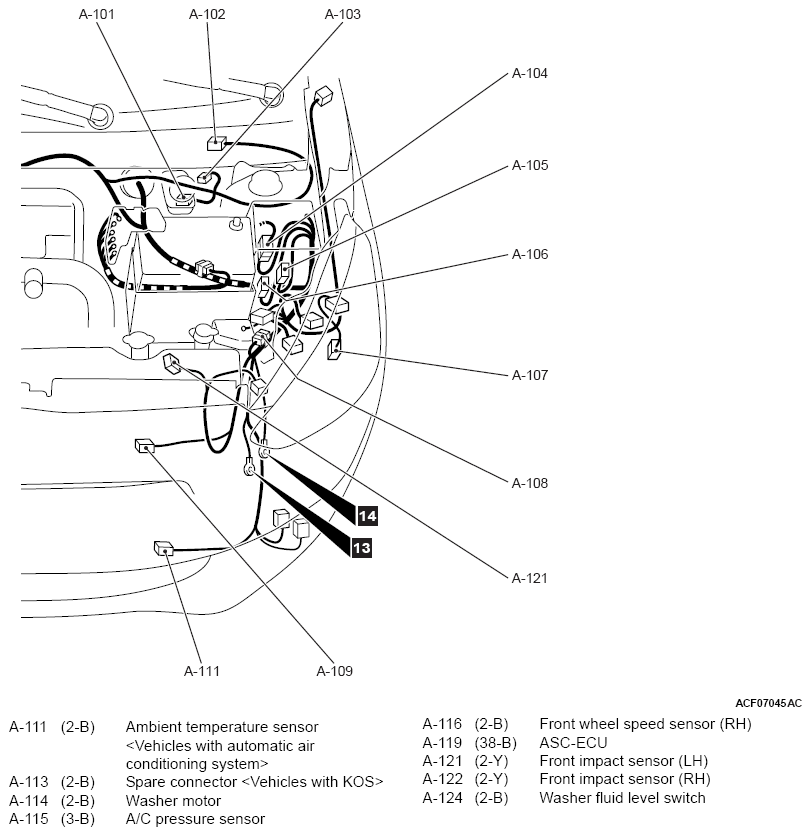

G12366181Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
