Engine And Transaxle

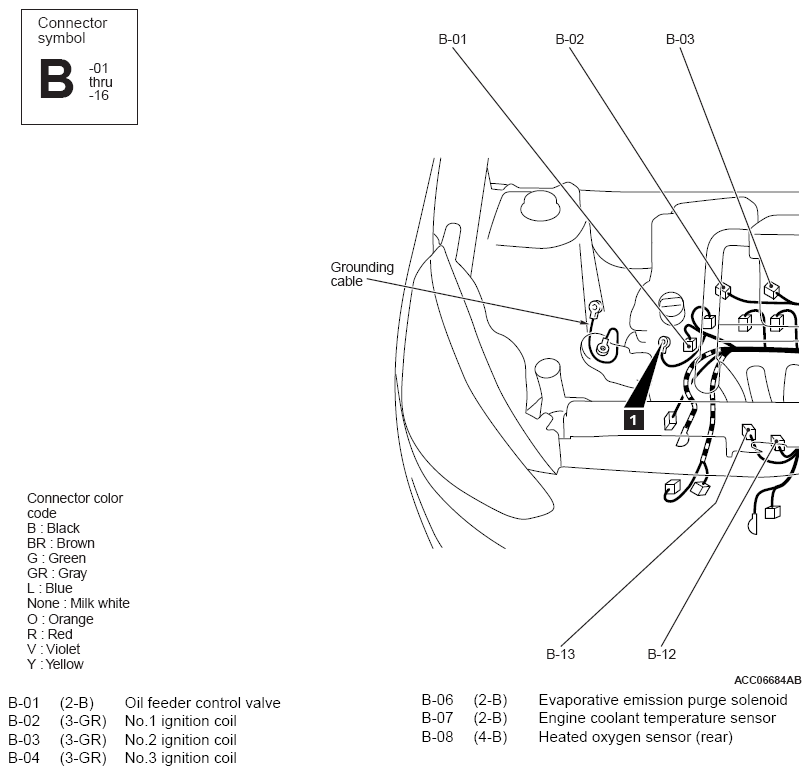

G12366182Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

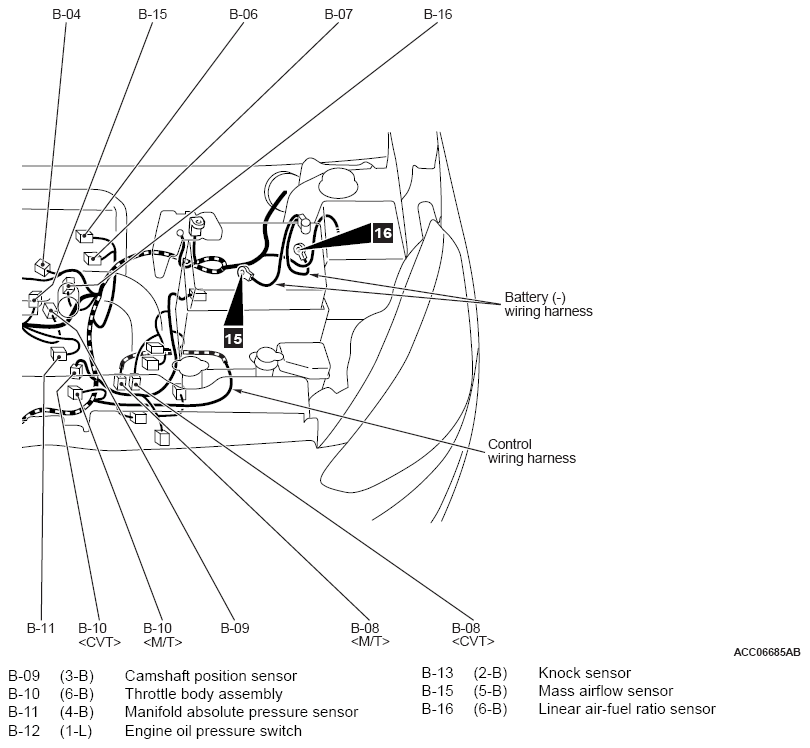

G12366183Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

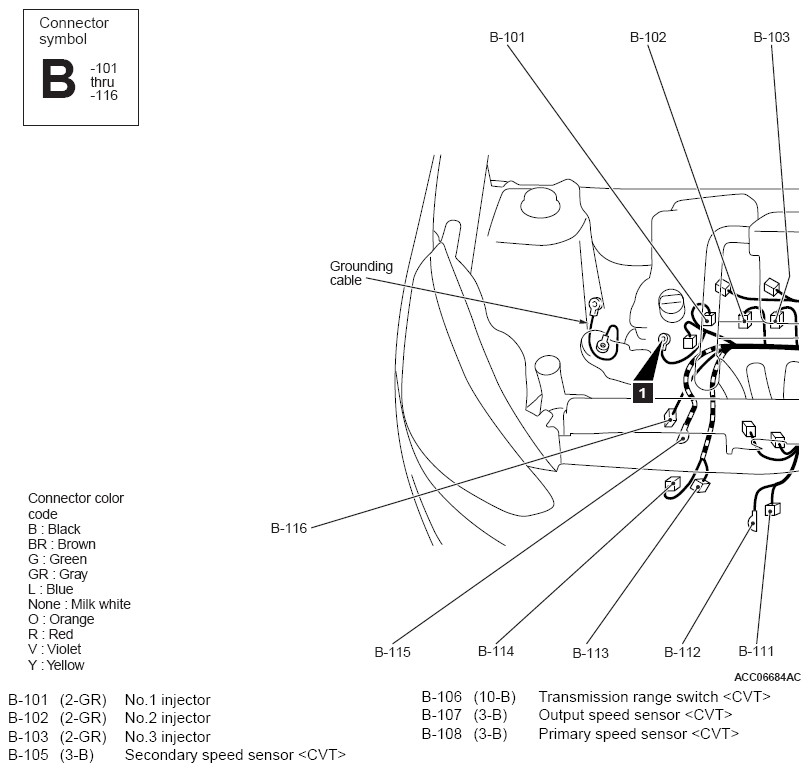

G12366184Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

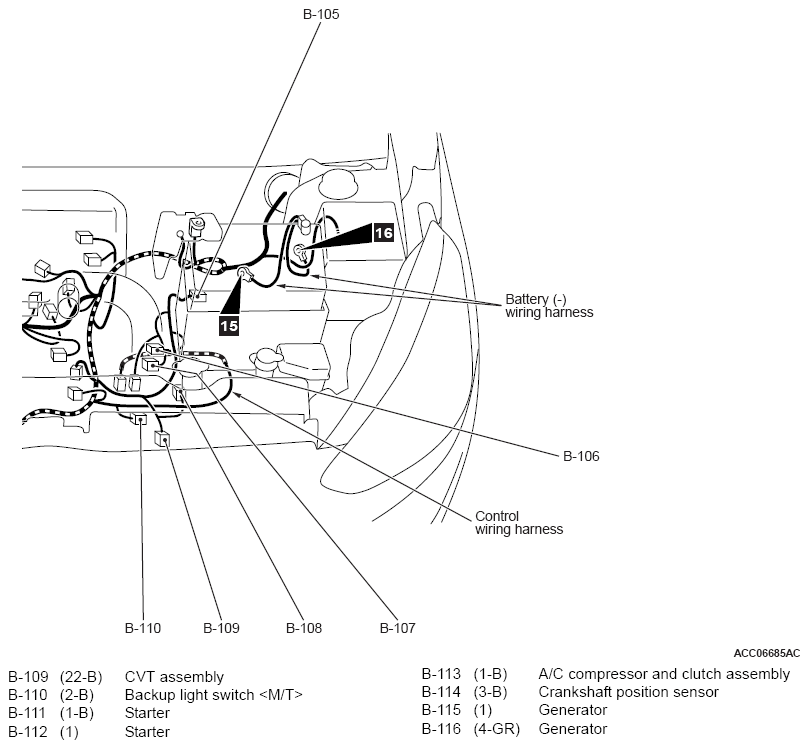

G12366185Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
