Removal And Installation
Removal And Installation
Pre-removal and post-installation operation
Instrument Panel Cover Lower Removal and Installation (Refer to
INSTRUMENT LOWER PANEL
)

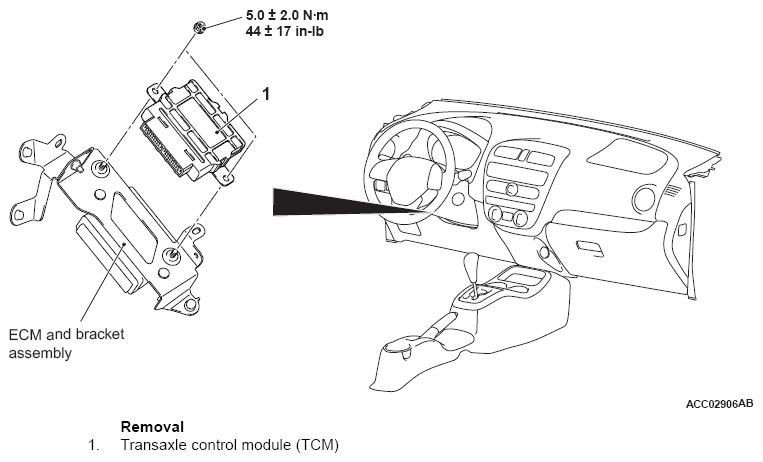

Fig 1: Removing/Installing Transaxle Control Module Component With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
