Disassembly And Reassembly: Notes

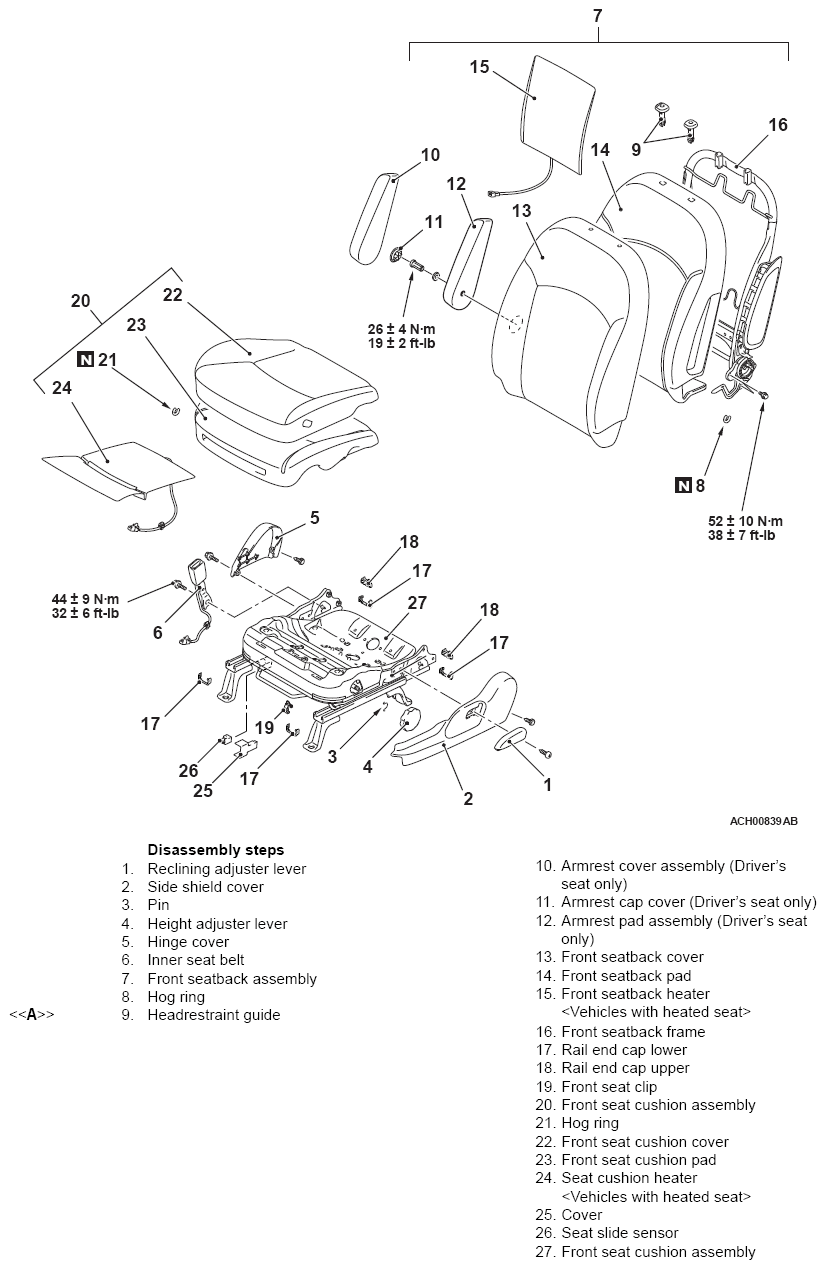

Fig 1: Disassembling/Assembling Front Seat Assembly Components With Torque Specification
G12363664Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
