Removal And Installation
Removal And Installation
Pre-removal and Post-installation Operation
Quarter Trim Upper LH Removal and Installation (Refer to
TRIMS
).

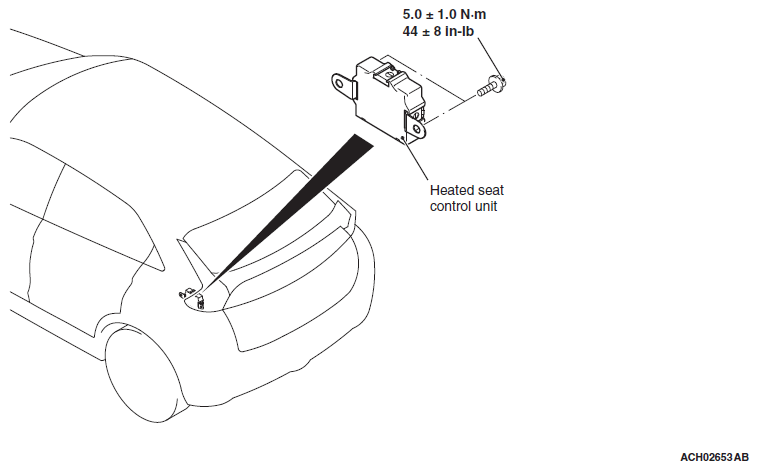

Fig 1: Heated Seat Control Unit With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
