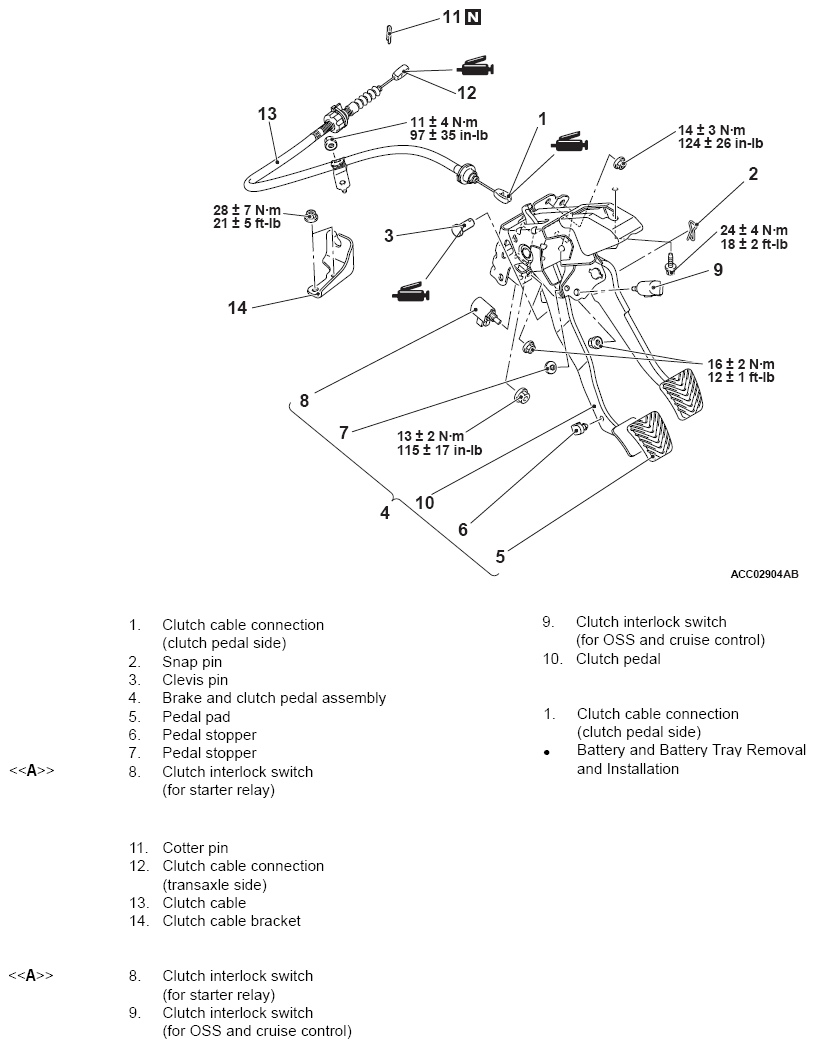

Removal And Installation: Notes
WARNING: This page is about a different car, the 2017 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.
Pre-removal Operation
- Loosen the clutch cable (transaxle side) adjusting nut as far as possible.
- Instrument Panel Lower Cover Removal (Refer to INSTRUMENT LOWER PANEL ).
- Knee Air Bag Module Removal (Refer to KNEE AIR BAG MODULE ).
Post-installation Operation
- Knee Air Bag Module Installation (Refer to KNEE AIR BAG MODULE ).
- Instrument Panel Lower Cover Installation (Refer to INSTRUMENT LOWER PANEL ).
- Clutch Pedal Adjustment (Refer to GENERAL INFORMATION .)
