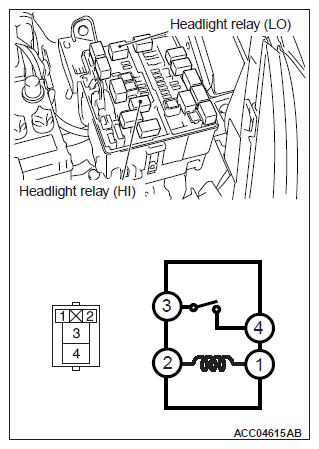

Headlight Relay Check
WARNING: This page is about a different car, the 2017 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.
| Battery voltage |
Terminal number |
Normal condition |
| At no energization |
3 - 4 |
Open loop |
| With current supply [terminal 2 (+), terminal 1 (-)] |
Less than 2 ohm |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
