Disassembly And Reassembly: Notes

WARNING: This page is about a different car, the 2017 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.

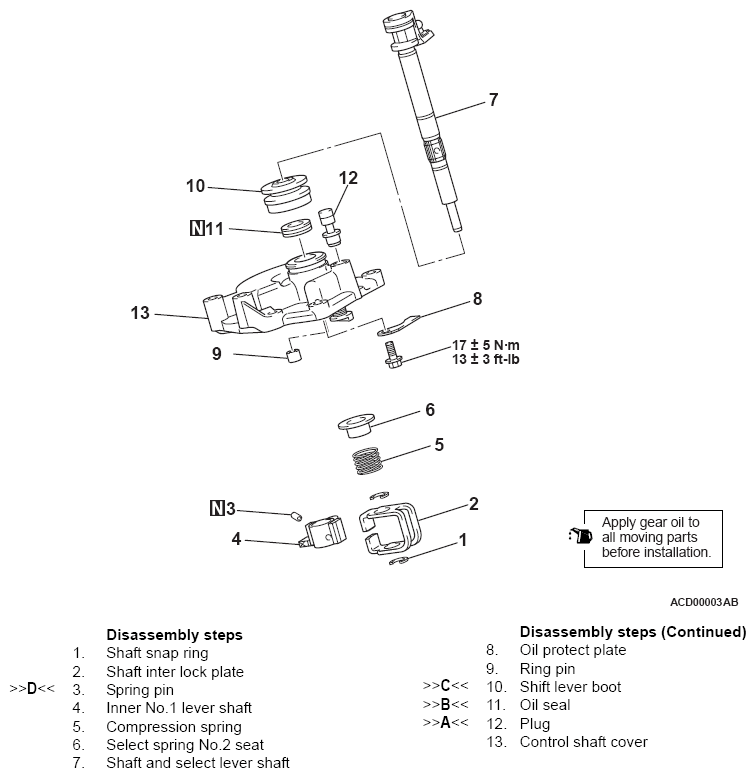

Fig 1: Control Housing Components With Torque Specifications
G11278183Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
