Removal And Installation: Notes

WARNING: This page is about a different car, the 2017 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.

Pre-removal and post-installation operation

Crankshaft Pulley Removal and Installation (Refer to CRANKSHAFT PULLEY ).
Generator Assembly Removal and Installation (Refer to GENERATOR ASSEMBLY ).
Water Pump Removal and Installation (Refer to WATER PUMP ).
Cylinder Head Cover Assembly Removal and Installation (Refer to ROCKER COVER ASSEMBLY ).

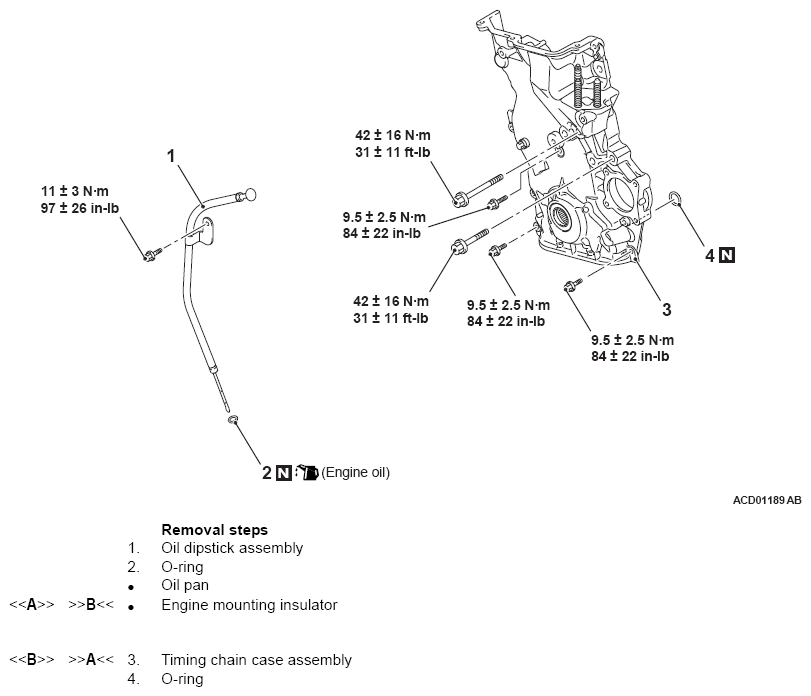

Fig 1: Timing Chain Case Assembly Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991928: Engine Hanger
- Slide Bracket (HI)
- MB991932: Foot (standard)
- MB991929: Joint (50)
MB991895: Engine Hanger
MB992906: Engine Hanger Attachment
