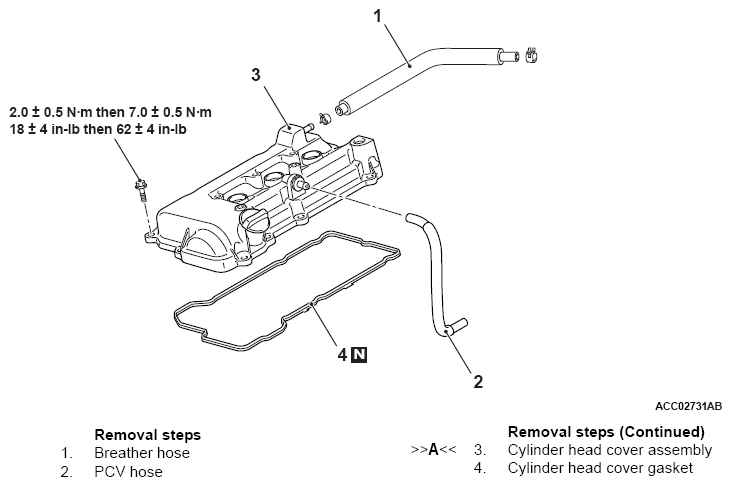

Removal And Installation: Notes
WARNING: This page is about a different car, the 2017 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.
Pre-removal Operation
- Air Cleaner Assembly Removal (Refer to AIR CLEANER ).
- Ignition Coil Removal (Refer to GENERATOR AND IGNITION SYSTEM ).
Post-installation Operation
- Ignition Coil Installation (Refer to GENERATOR AND IGNITION SYSTEM ).
- Air Cleaner Assembly Installation (Refer to AIR CLEANER ).
