Removal And Installation: Notes

WARNING: This page is about a different car, the 2017 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: When the engine assembly is replaced, initialize the learned value using scan tool (M.U.T.-III) (Refer to INITIALIZATION PROCEDURE FOR LEARNING VALUE IN MFI ENGINE ).

Pre-removal Operation

Fuel Line Pressure Reduction (Refer to REDUCE PRESSURIZED FUEL LINES ).
Engine Room Under Cover Removal (Refer to UNDER COVER ).
Engine Coolant Draining (Refer to ENGINE COOLANT REPLACEMENT ).
Engine Oil Draining (Refer to ENGINE OIL REPLACEMENT ).
Transmission Oil Draining (Refer to TRANSMISSION OIL REPLACEMENT ) <M/T>.
CVT Fluid Draining (Refer to CVT FLUID REPLACEMENT ) <CVT>.
Starter Assembly Removal (Refer to STARTER ASSEMBLY ).
Bell Housing Cover Removal (Refer to OIL PAN ).
Drive Shaft Assembly Removal (Refer to DRIVE SHAFT ASSEMBLY ).
Exhaust Manifold Removal (Refer to EXHAUST MANIFOLD ).
Air Cleaner Assembly Removal (Refer to AIR CLEANER ).
Radiator Assembly Removal (Refer to RADIATOR ).

Post-installation Operation

Radiator Assembly Installation (Refer to RADIATOR ).
Air Cleaner Assembly Installation (Refer to AIR CLEANER ).
Exhaust Manifold Installation (Refer to EXHAUST MANIFOLD ).
Drive Shaft Assembly Installation (Refer to DRIVE SHAFT ASSEMBLY ).
Bell Housing Cover Installation (Refer to OIL PAN ).
Starter Assembly Installation (Refer to STARTER ASSEMBLY ).
Transmission Oil Refilling (Refer to TRANSMISSION OIL REPLACEMENT ). <M/T>.
CVT Fluid Refilling (Refer to CVT FLUID REPLACEMENT ) <CVT>.
Engine Oil Refilling (Refer to ENGINE OIL REPLACEMENT ).
Engine Coolant Refilling (Refer to ENGINE COOLANT REPLACEMENT ).
Fuel Leak Check
Engine Room Under Cover Installation (Refer to UNDER COVER ).

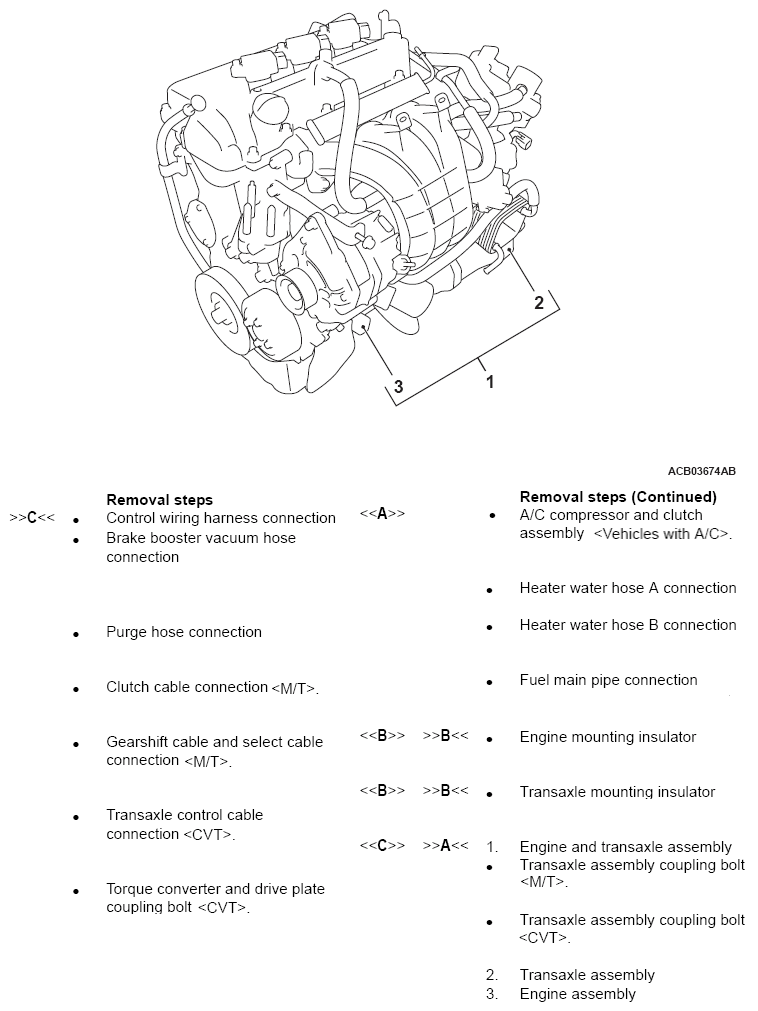

Fig 1: Engine Assembly Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991928: Engine Hanger
- Slide Bracket (HI)
- MB991932: Foot (standard)
- MB991929: Joint (50)
MB991895: Engine Hanger
MB992906: Engine Hanger Attachment
MB992336: EV Battery Cart
