>>B<< Front Oil Seal Installation

Apply a small amount of engine oil to the entire inner diameter of the front oil seal lip.

CAUTION: The front oil seal must not be a strong press fit. The strong press fit can possibly cause the oil leakage, damaging the front oil seal.

Install the front oil seal into the timing chain case using the special tool Differential crankshaft front oil seal installer (MD998382).

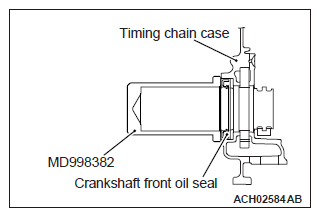

Fig 1: Installing Front Oil Seal Into Timing Chain Case Using Special Tool Differential Crankshaft Front Oil Seal Installer (Md998382)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
