>>C<< Retainer Lock Installation

Use a special tool to compress the valve spring and to install the retainer lock.

• Valve spring compressor (MD998735)
• Retainer holder C (MB992089)

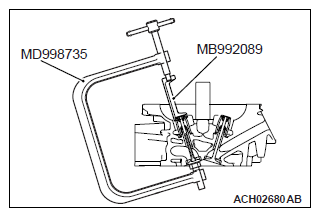

  Fig 1: Compressing Valve Spring Using Special Tool

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
