>>B<< Valve Spring Installation

Install the valve spring so that the painted side faces toward the camshaft.

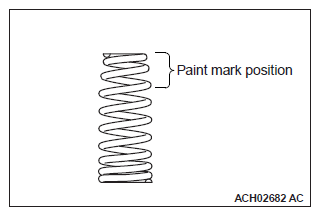

Fig 1: Paint Mark Position On Valve Spring

G12143904

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
