Removal And Installation: Notes

CAUTION:
  • Do not reuse the camshaft position sensor, crank angle sensor and oil feeder control valve (OCV) that has been dropped.

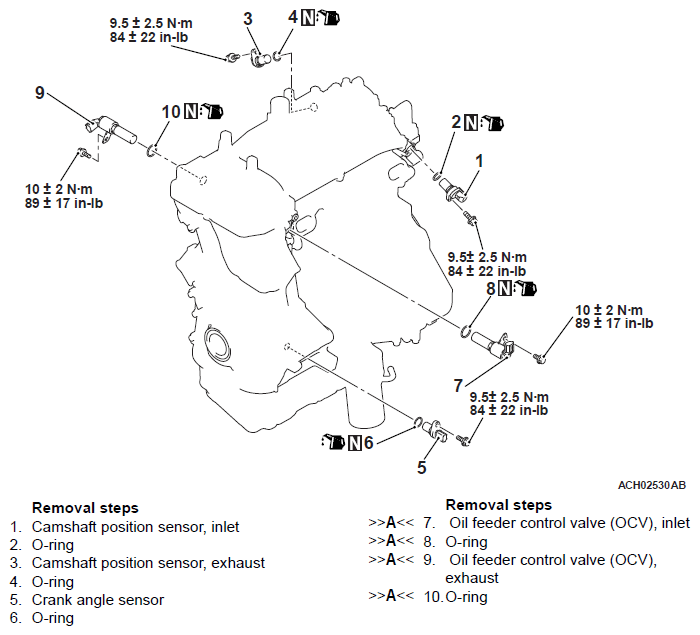

Fig 1: Camshaft Position Sensor, Crank Angle Sensor And Oil Control Valve Component With Torque Specifications
G12143841Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
