Overall Configuration Diagram

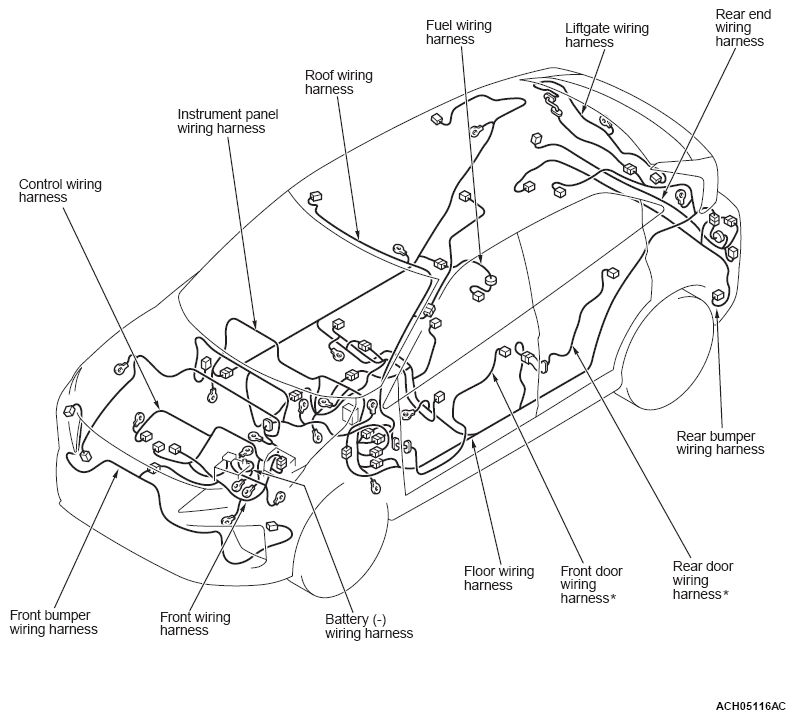

Fig 1: Overall Configuration Diagram
G12151551Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE:
  1. This illustration shows only major wiring harnesses.
  2. *: also equipped at the right side.
